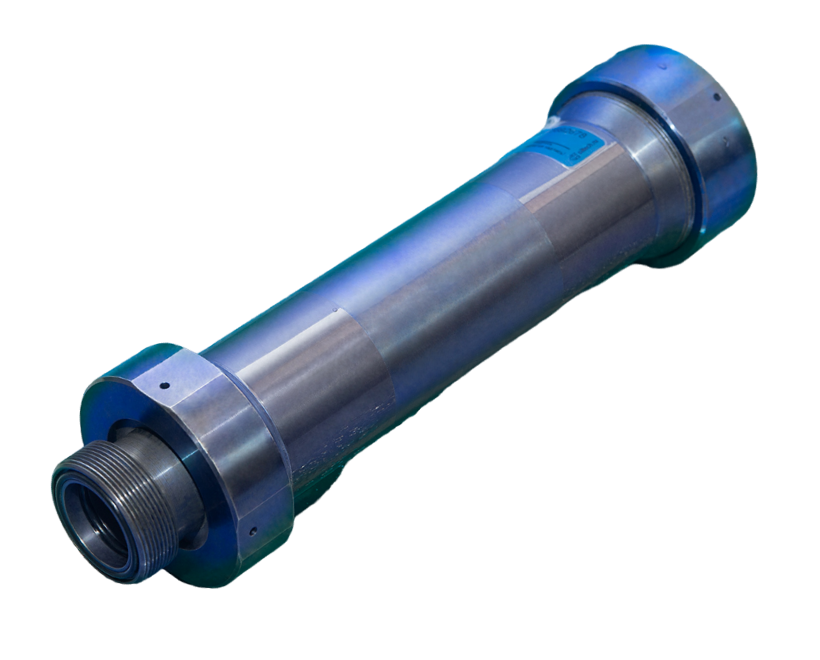

Aquazond Underwater Altimeter GAL-30
The Underwater altimeter GAL-30 is designed for installation on underwater vehicles and measures the distance from the emitting antenna to the seabed or other reflective objects.
The GAL-30 is a software-hardware complex used for real-time positioning tasks in marine technology. It can be utilized in both remotely operated vehicle (ROV) systems and as part of the technical vision system for autonomous underwater vehicles (AUV).
Specifications | |
|---|---|
| Operating frequency | 290 kHz to 360 kHz |
| Beam width | 5° |
| Range | 0,25 m to 150 m |
| Resolution | 0,007 m |
| Depth rating | 6000 m / 12000 m |
| Temperature | -5° to 35°C |
| Communications | Ethernet 10/100 / RS-232 |
| External power | (27 ± 2,7) V |
| Power | no more than 10 W |
| Construction | Aluminum alloy/Titanium alloy |
| Dimensions | ⌀ 76 mm х 285 mm |
| Weight in air | no more than 2,5 kg |
| Warranty period | 12 month |
