Aquazond Side Scan Sonar GBO-200M

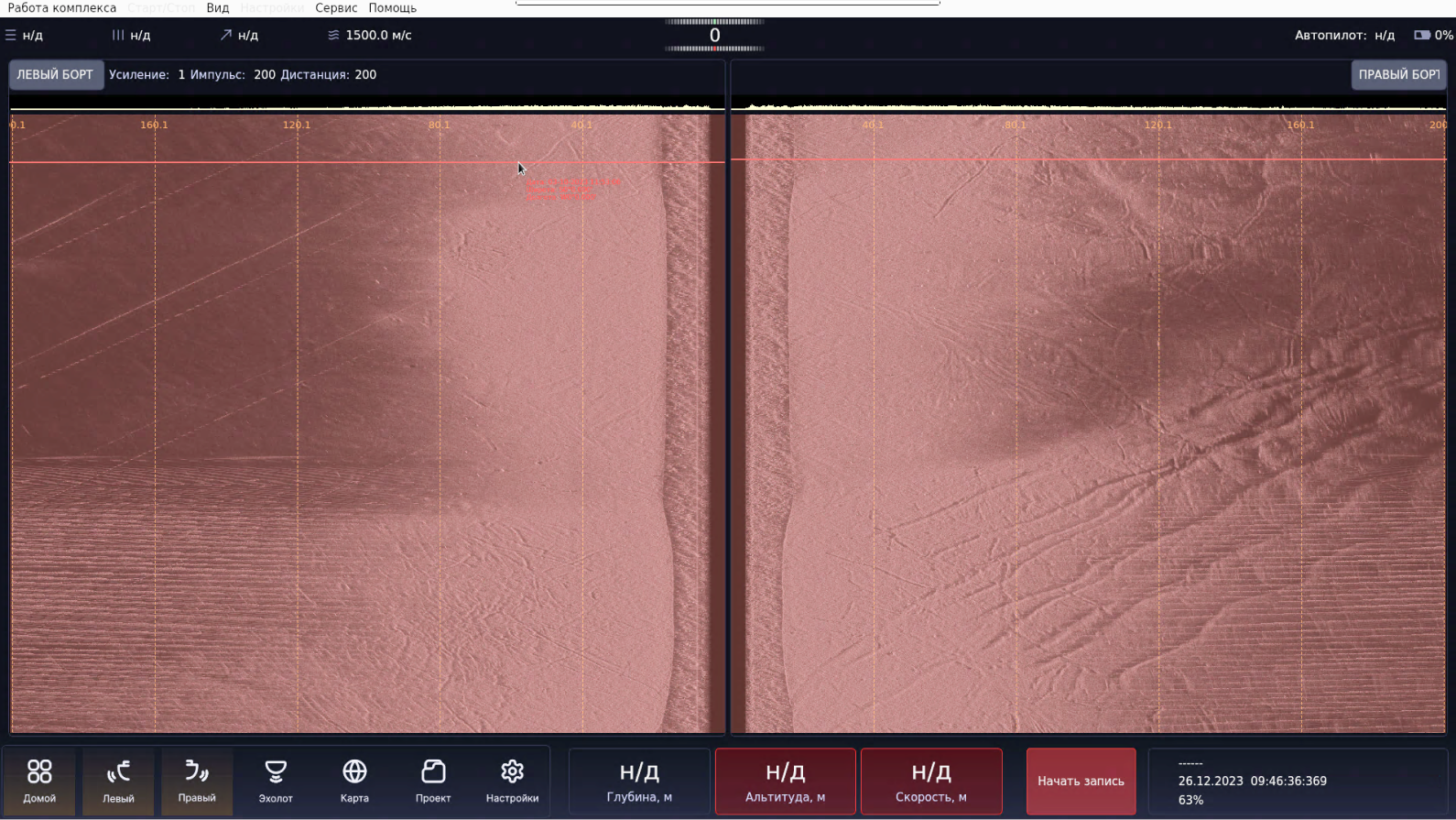

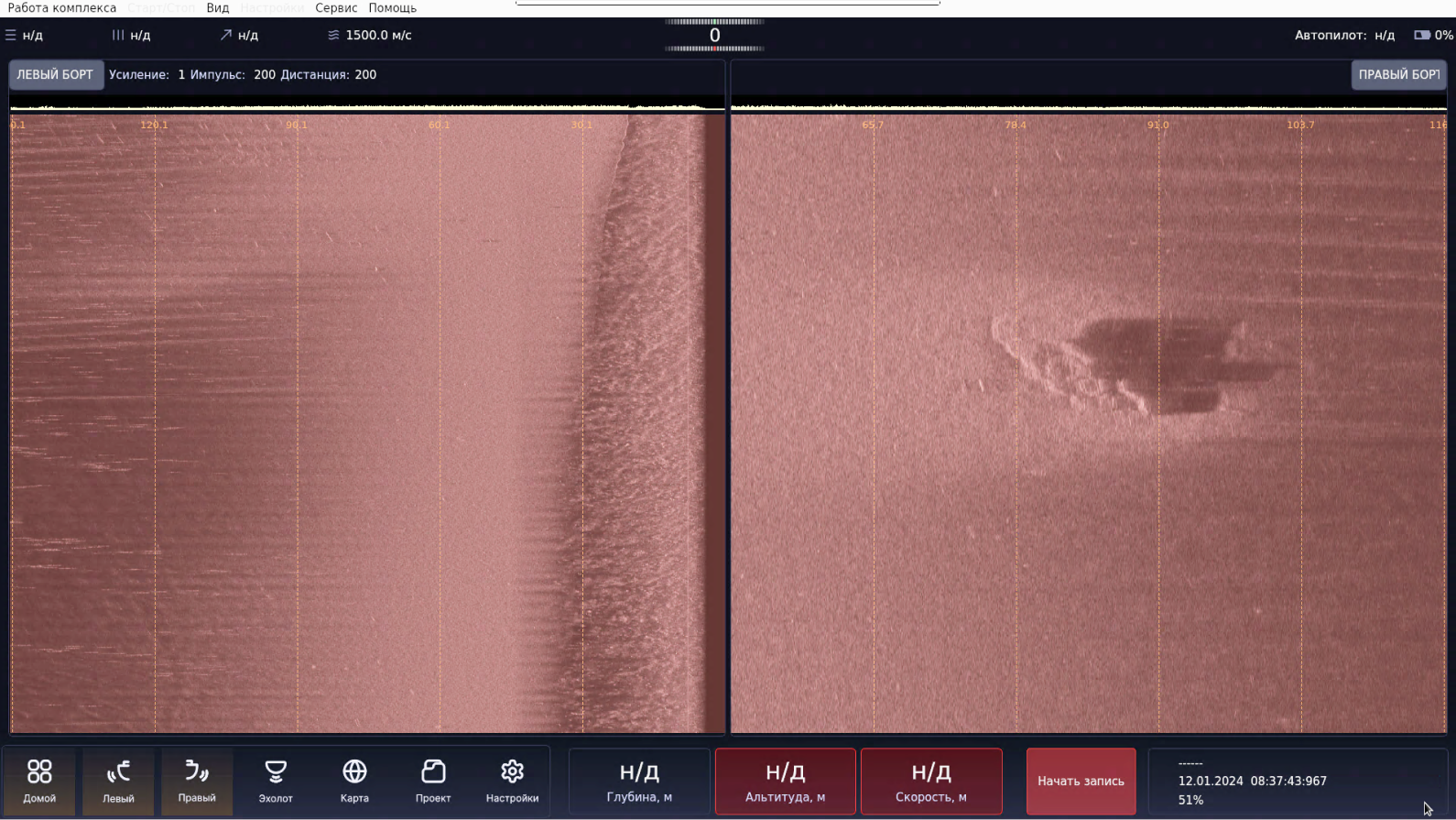

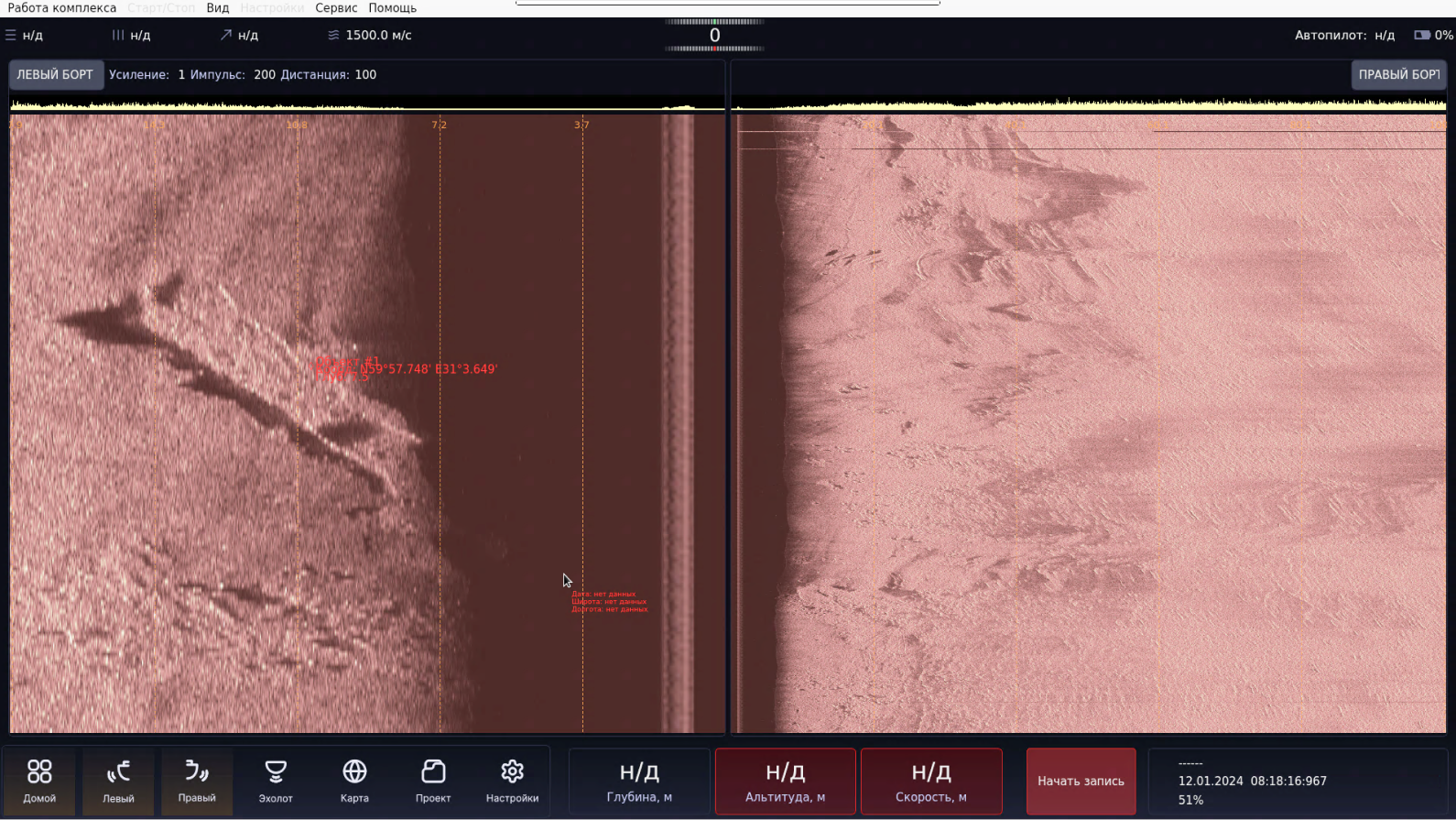

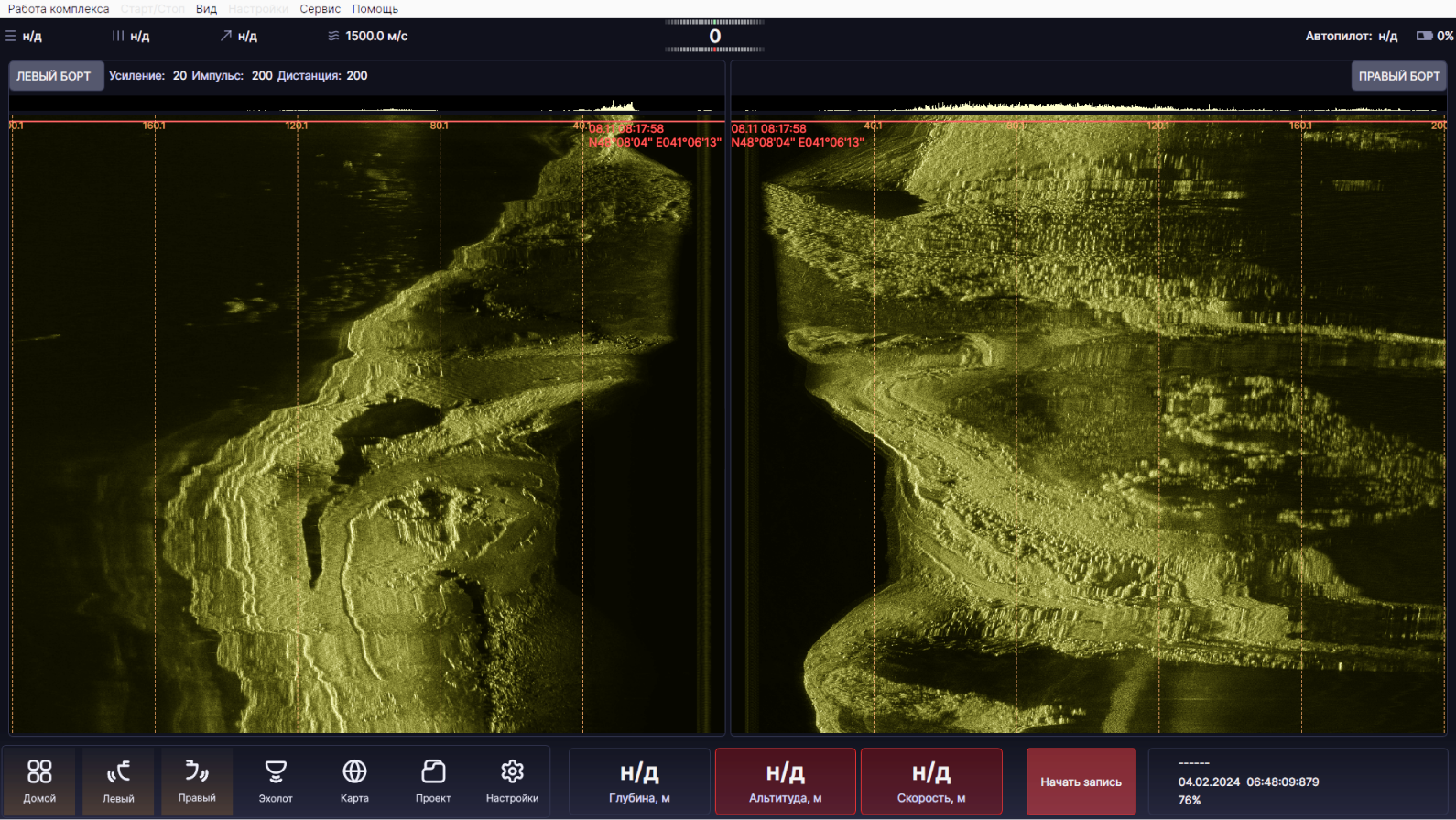

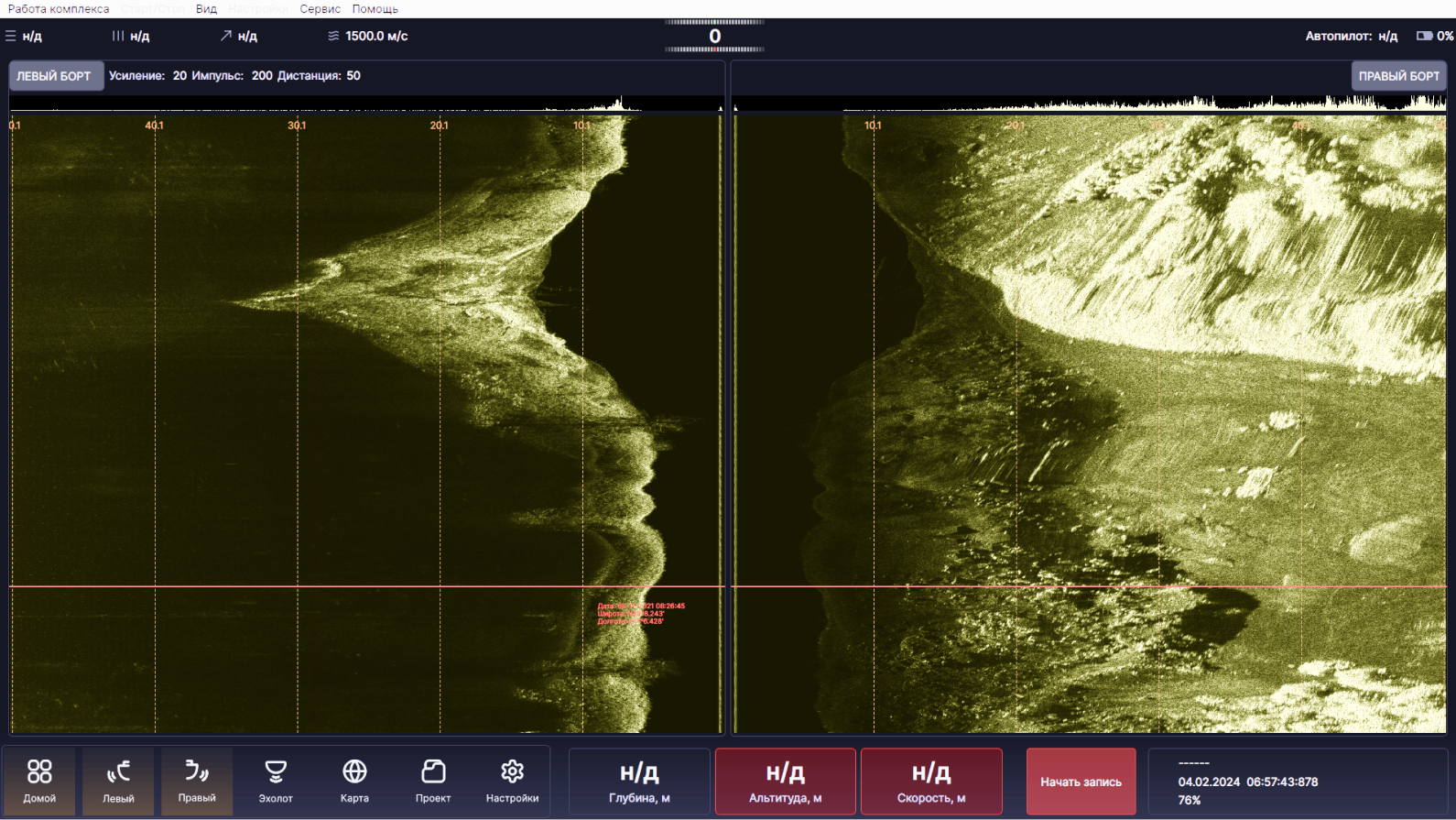

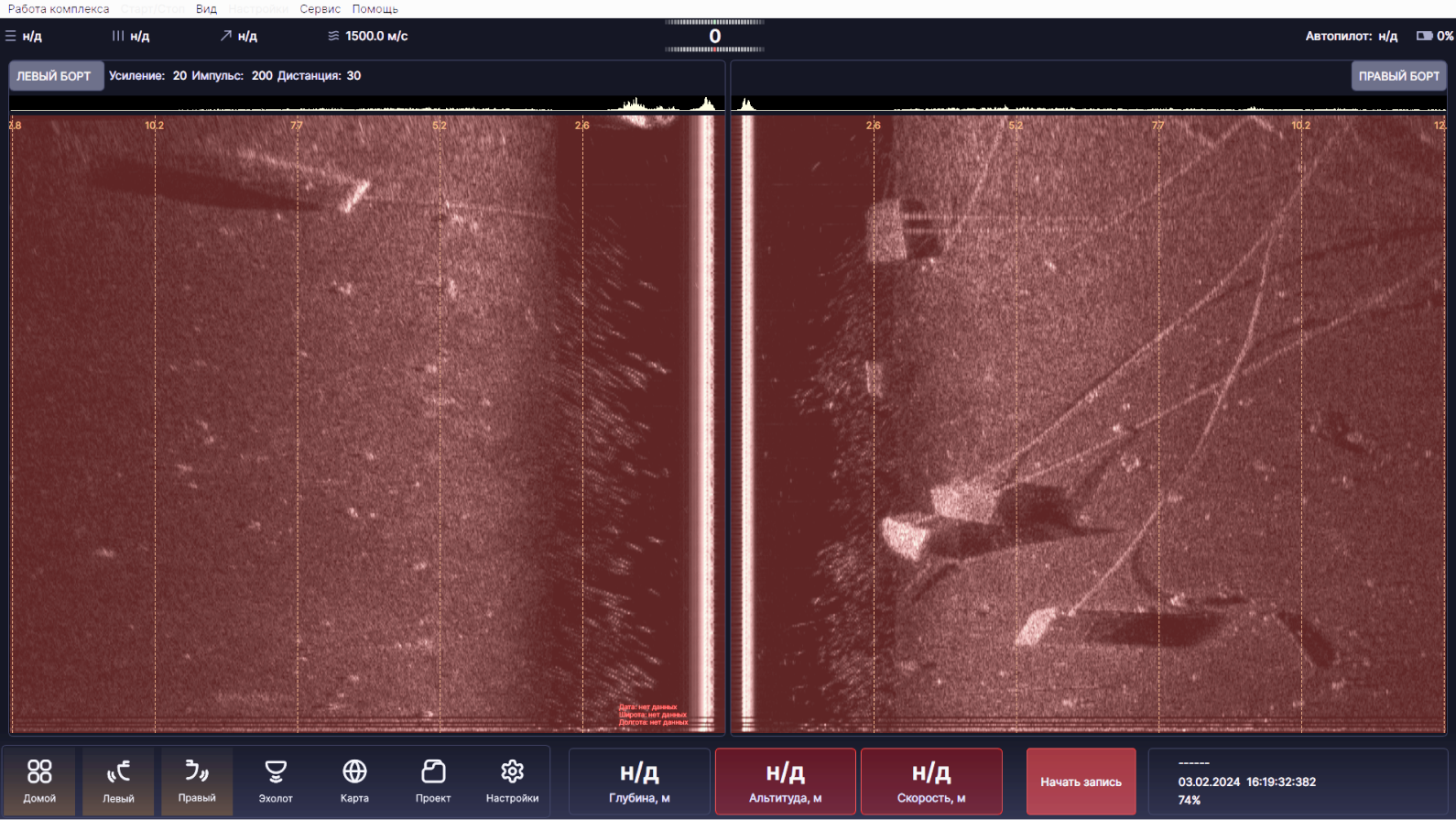

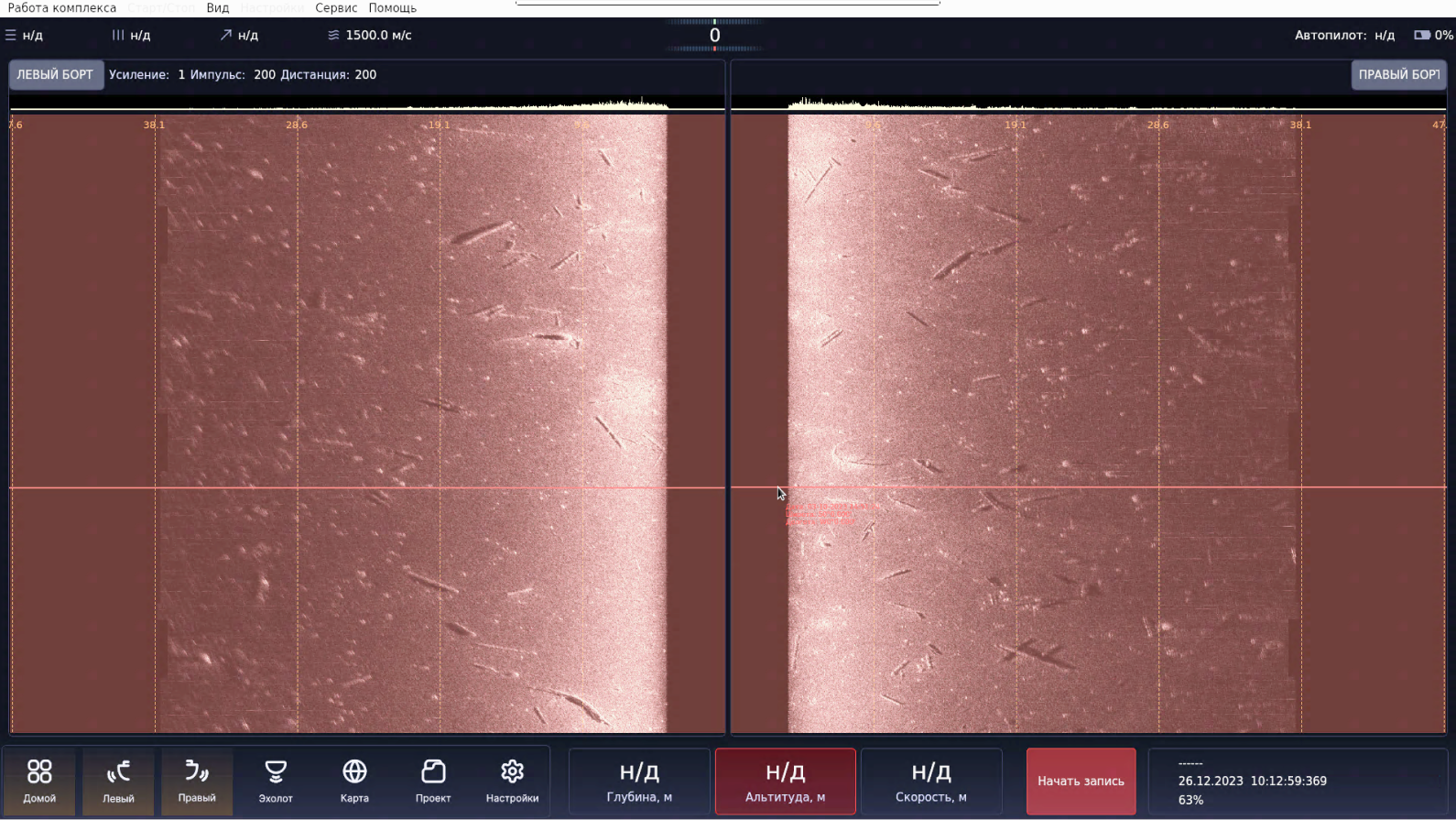

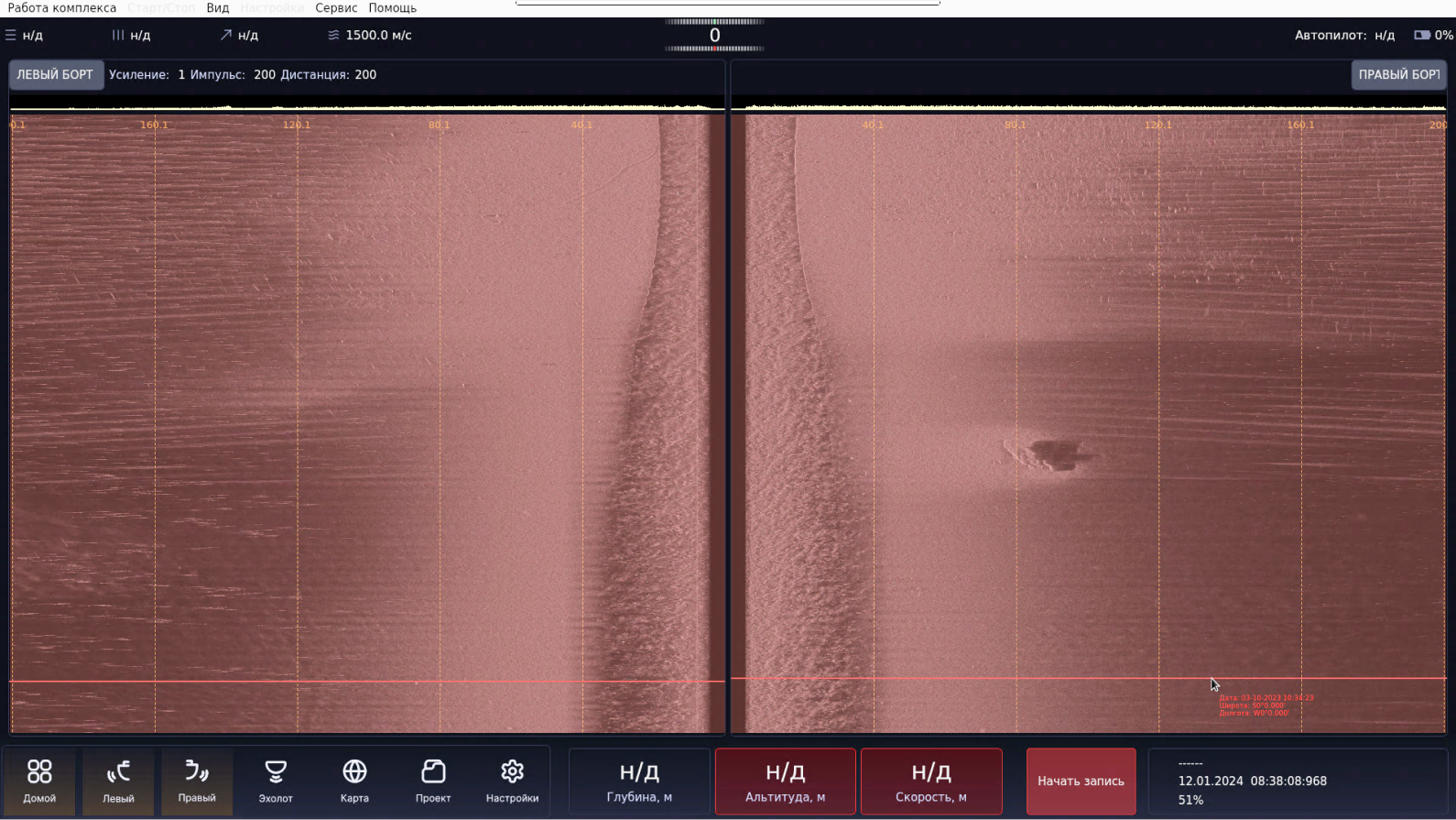

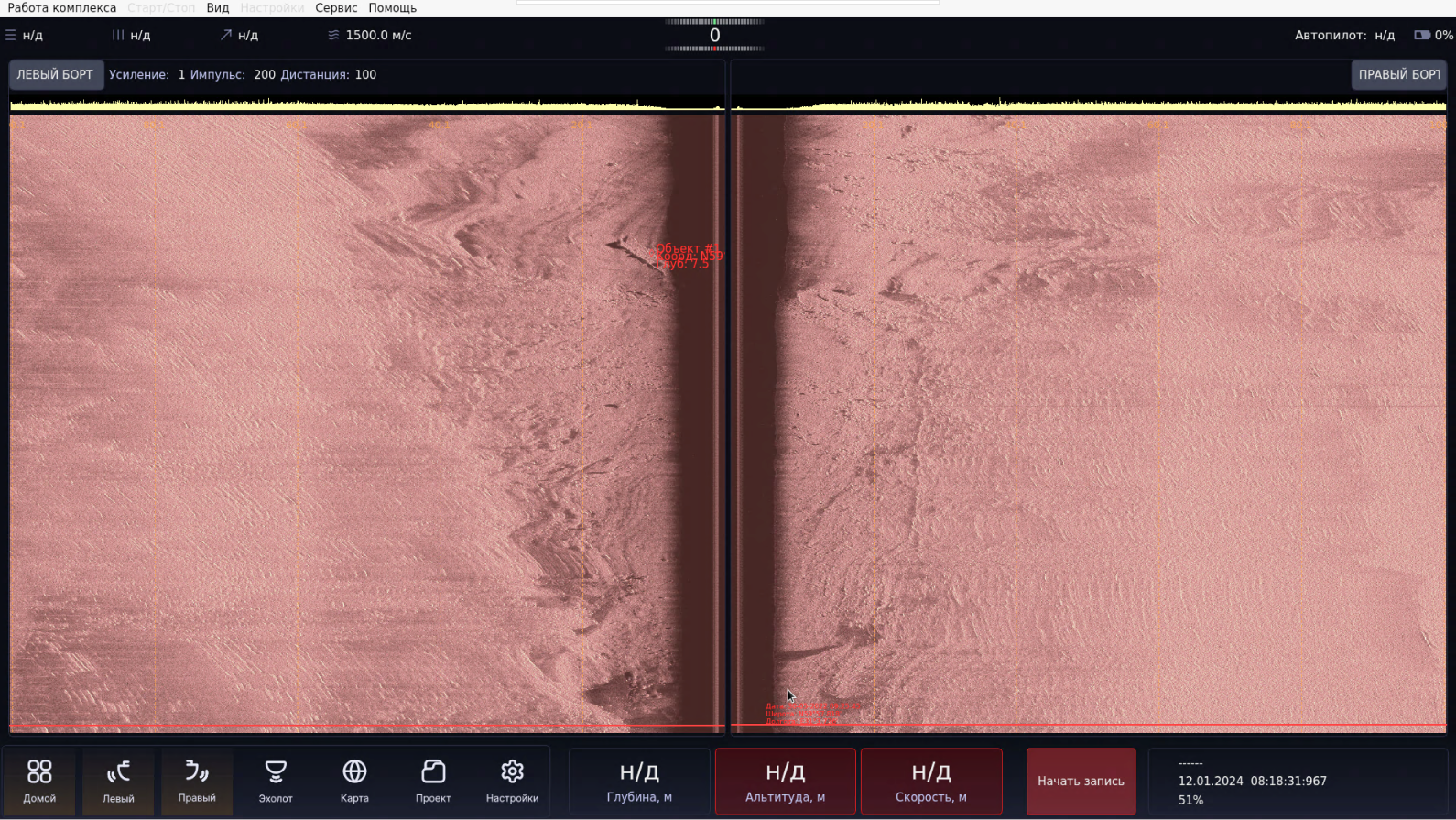

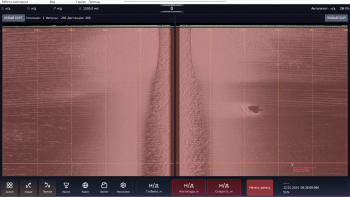

The Side Scan Sonar GBO-200M, while the vessel is in motion, allows for the measurement and recording of the seabed profile beneath the vessel and provides hydroacoustic images of the seabed surface to the left and right sides of the vessel.
The GBO-200M is designed for installation on various vessels using an overboard deployment system and is used in hydrographic, surveying, scientific research, and emergency rescue operations.
The GBO-200M consists of a depth-sounding echo sounder channel and a side-scan sonar channel.

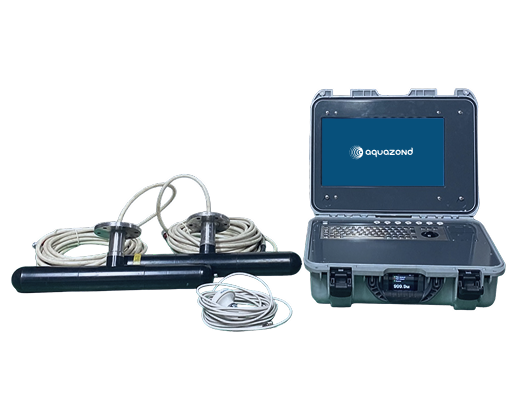

The GBO-200M includes:
- Hydroacoustic transceiver antenna SA-015 — 2 units
- Satellite navigation system signal receiver antenna — 1 unit
- Electronics unit GBO-200-Depth-M
- Charger for built-in batteries

Buy

Specifications

Sonar depth range	0.2 to 150 m
Sonar depth measurement error	0.1%, but no more than 10 cm
Resolution	5 mm
Maximum scanning range (per side)	200 m
Cross-track resolution (by distance)	no more than 17 mm
Standard scanning ranges	50 m; 100 m; 150 m; 200 m
Beam width	15°
Along-track resolution	1.3°
Frequency of the echo sounder	270 kHz
Frequency of the side-scan sonar channel	200 kHz
Beam width at 270 kHz	9°, conical
Beam width at 200 kHz	1.3° × 40°
Depth rating	up to 300 m
Night and day palette function	available
Dynamic scaling function	available
Function to scroll to any recording start point without stopping the current survey	available
Mapping option	available
Autopilot option	available
Survey planning option	available
Weight of the transceiver antenna	4.8 kg
Weight of the electronics unit	no more than 18.16 kg
Temperature	-5° to 35°C
Built-in storage capacity	at least 170 h of operation
Communications	Ethernet, USB, 1PPS, Synch_IN, Synch_OUT, RS232, Wi-Fi (optional), RS-485 (optional)
Full battery charging time	no more than 45 min
Continuous operation time	24 h
Warranty period	12 month
