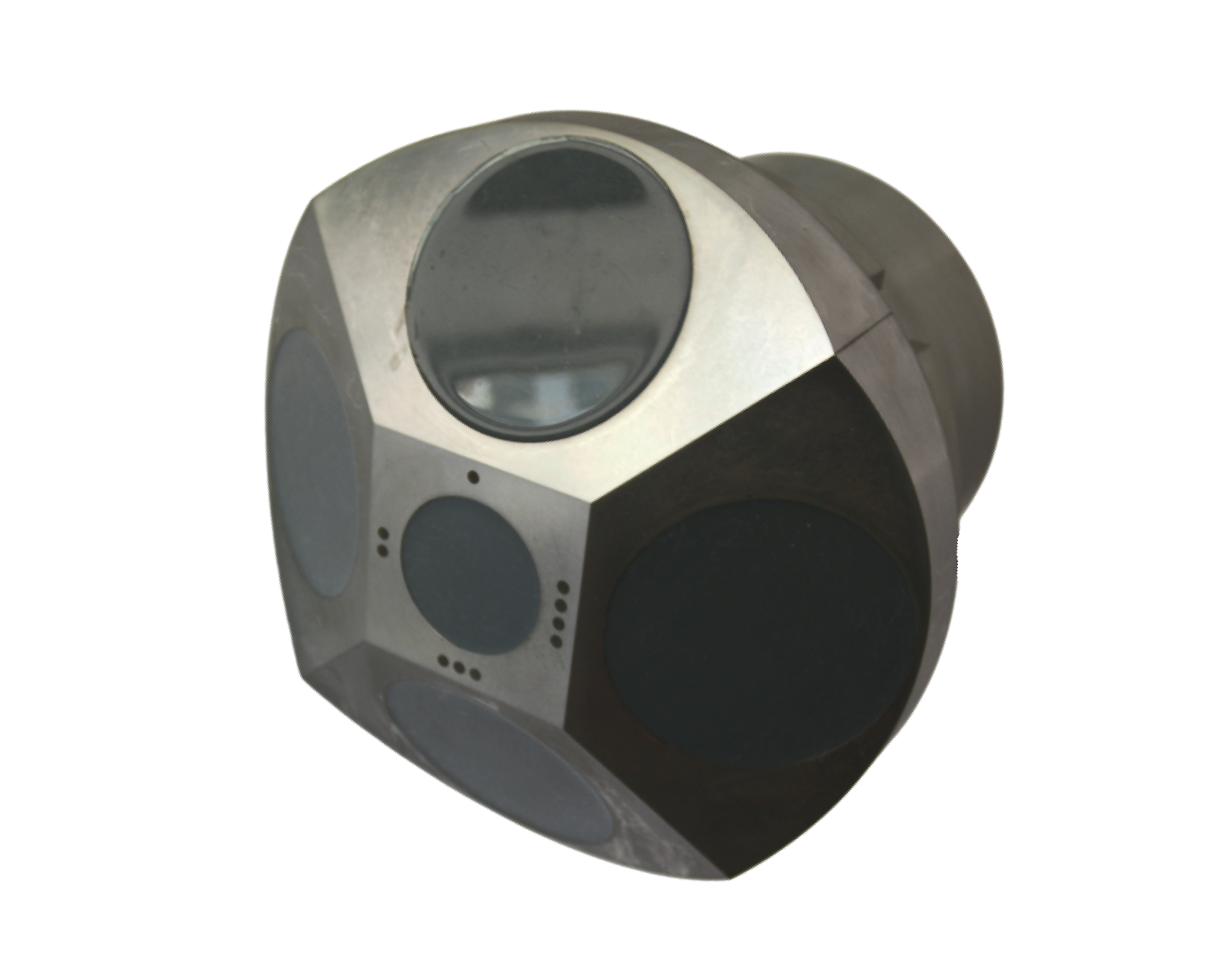

Aquazond ADCP PT-300
ADCP PT-300 is designed to measure the velocity profile and direction of currents.
It is a software-hardware complex used in environmental hydro-monitoring and is an essential component of ecological monitoring systems for water bodies.
Functionally, the ADCP PT-300 includes:
- A 4-beam Doppler system
- Pitch and roll sensors
- A magnetic compass
- A high-precision water temperature sensor
- A pressure sensor
The built-in echo sounder provides information on the distance to the water surface or seabed.
For underwater installation, the ADCP PT-300 can operate in two main modes:
- Real-time online operation
- Operation according to a predefined deployment plan
Specifications | |
|---|---|
| Operating frequency | 300 kHz |
| Profiling range | 10 m; 20 m; 40 m; 60 m; 80 m; 120 m; 150 m |
| Cell size | 0,35 m; 0,5 m; 0,7 m; 1m; 2 m; 5 m |
| Minimum blanking distance | 2 m |
| Velocity range (along beam) | 0,01m/s to 5 m/s |
| Velocity RMS | ± 1% ± 1,25 cm/s (long term ± 0,5%) |
| Maximum ping rate | 4 Hz |
| Beam width/angle | ≤ 3.5° |
| Temperature | -5° to 35°C |
| Heading accuracy/resolution | ± 2,5°/1° |
| Pitch & roll accuracy/resolution | no more than 2°/0.1° |
| Communications | Fast Ethernet, Wi-Fi |
| External power | 20 V to 30 V |
| Power | no more than 50 W |
| Depth rating | 6000 m |
| Construction | Titanium alloy |
| Weight in air | no more than 22 kg |
| Dimensions | ⌀ 250 mm х 270 mm |
| Warranty period | 12 months |
