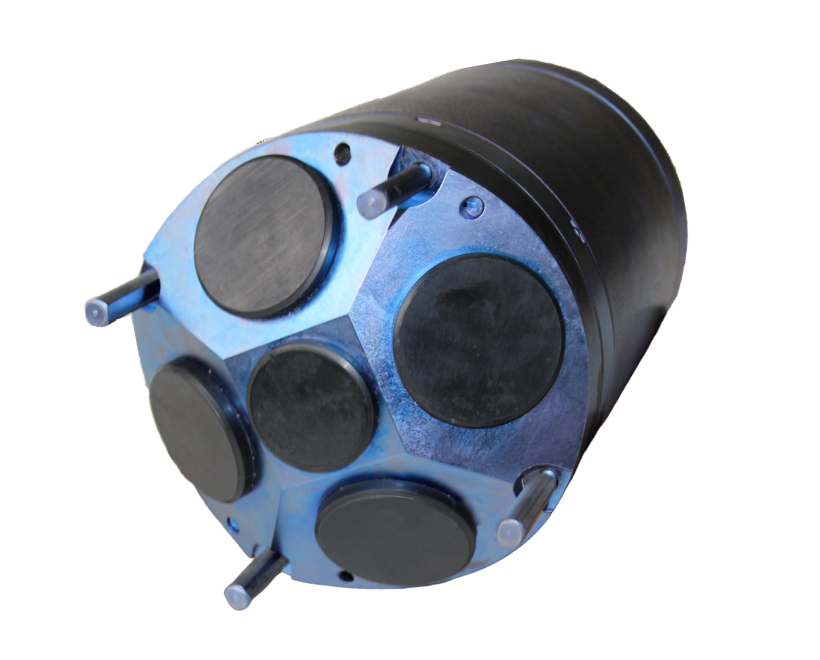

Aquazond Doppler Log LD-600
The Doppler log LD-600 is installed on various underwater vehicles, stationary and mobile buoy stations, and surface vessels of different designs.
Functionally, the Doppler log LD-600 combines:
- A 4-beam Doppler log

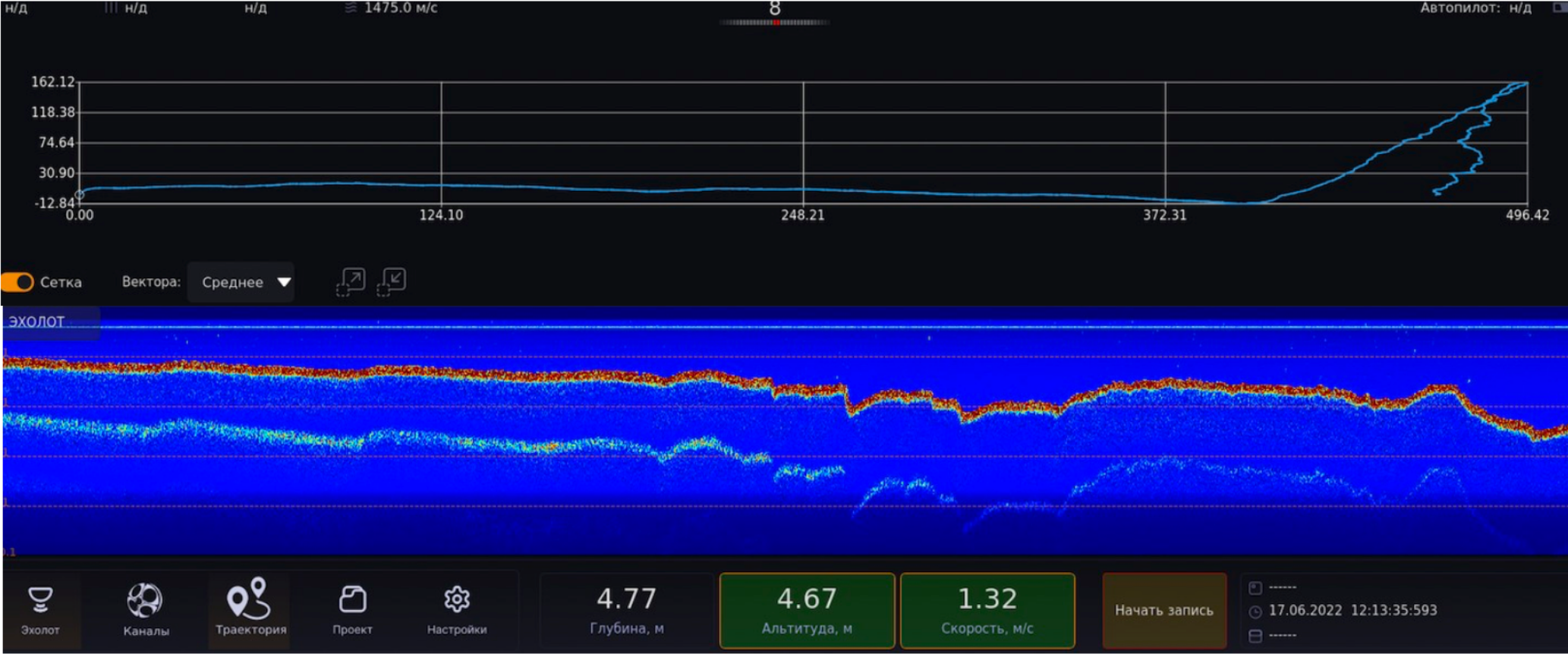

- A navigation echo sounder

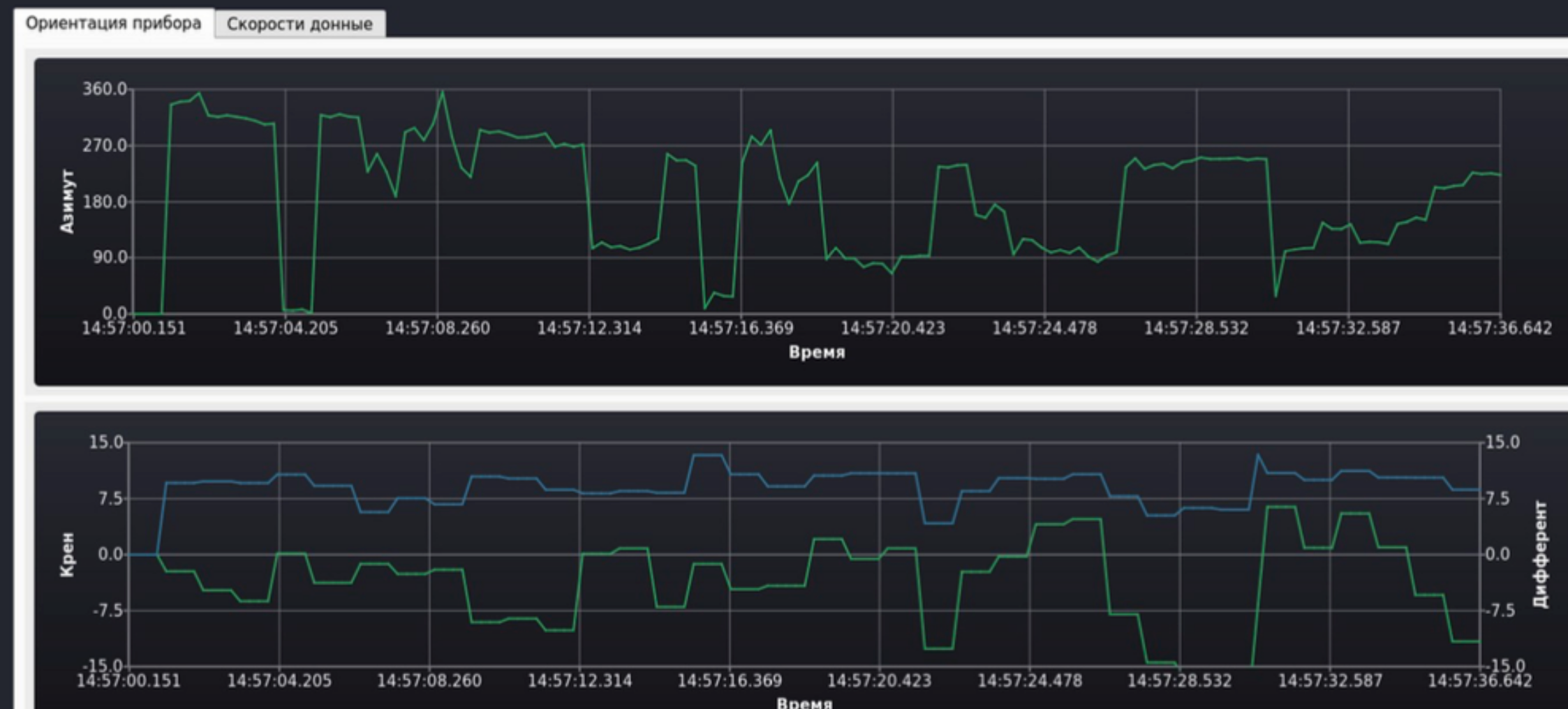

- Sensors for pitch, roll, and magnetic heading
- A water temperature sensor

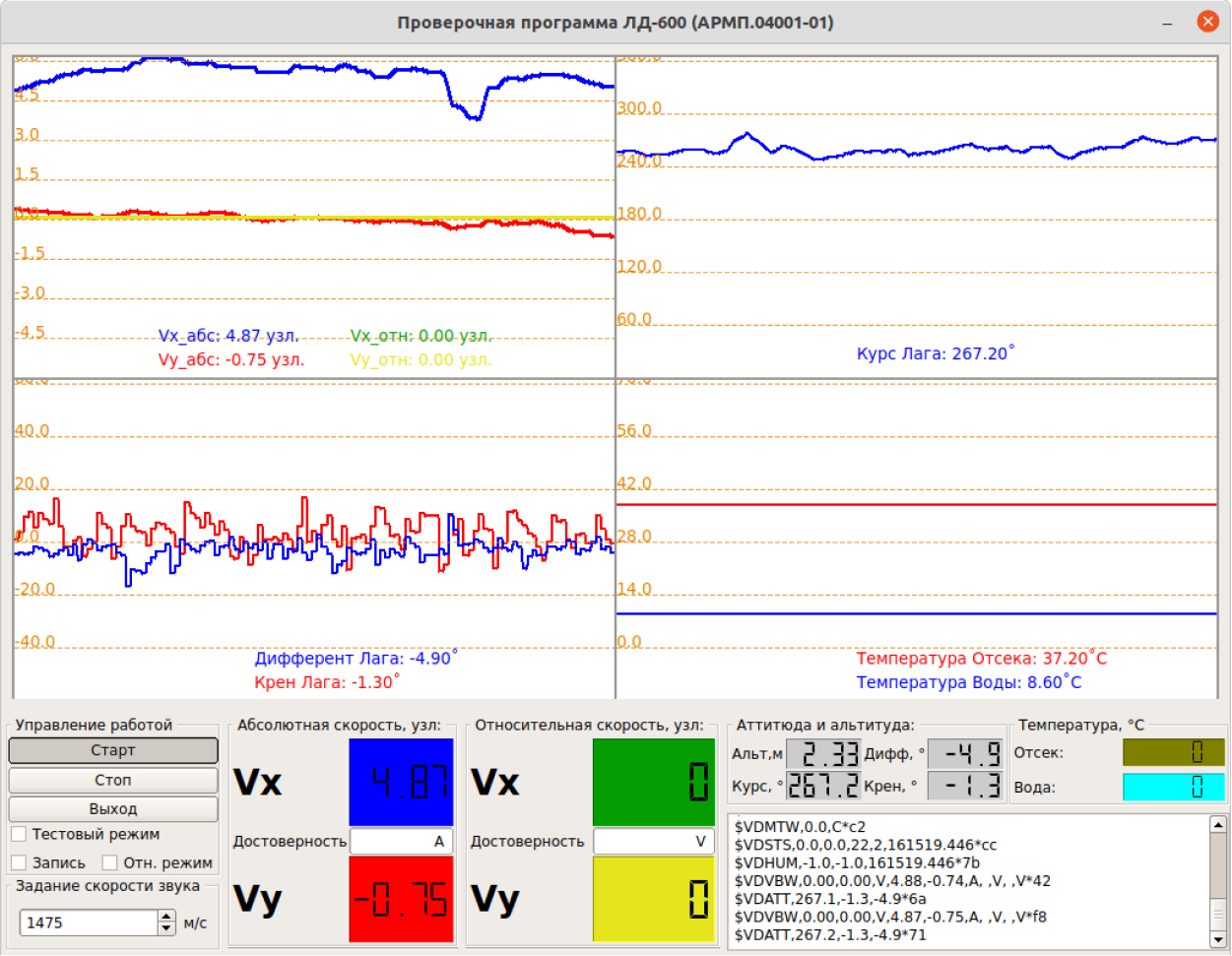

It is a software-hardware complex designed for real-time positioning of marine objects. Upon special request, the client-side software can be equipped with a module for autonomous trajectory calculation.
Specifications | |
| Maximum operating depth | up to 6000 m |
| Velocity measurement range | 0,01m/s to 5 m/s |
| Operating frequency | 561 kHz |
| Number of beams | 4 |
| Minimum distance to the seabed | 0.65 m |
| Nominal operating range | 100 m |
| Navigation echo sounder | available |
| Navigation echo sounder operating frequency | 295 kHz |
| Navigation echo sounder beam width | 15° |
| Temperature sensor | available |
| Compass | available |
| Pitch and roll sensor | available |
| Ping Rate | 4 Hz |
| Velocity measurement error (horizontal components) | ± 0.5% of the measured value |
| RMS (for pulse duration set to half the maximum working range) | ± 0.6 cm/s |
| RMS for minimum distance to the seabed | ± 1.25 cm/s |
| Pitch and roll measurement accuracy | ≤ 2° |
| Pitch and roll angular resolution | 0.1° |
| Magnetic heading accuracy | ± 2.5° |
| Magnetic heading angular resolution | 1° |
| Communications | Ethernet (IEEE 802.3 — 100BASE-TX) |
| External power | (27 ± 3) V |
| Power | no more than 40 W |
| Construction | Titanium VT1 |
| Dimensions | Ø200 × 318.8 mm |
| Weight in air | 27 kg |
| Temperature | -5°C … +35°C |
| Warranty period | 12 months |
