Aquazond ADCP PT-600
- ADCP PT-600 is designed to measure the velocity profile and direction of currents. It is a software-hardware complex used in environmental hydro-monitoring and is an integral component of ecological monitoring systems for water bodies.

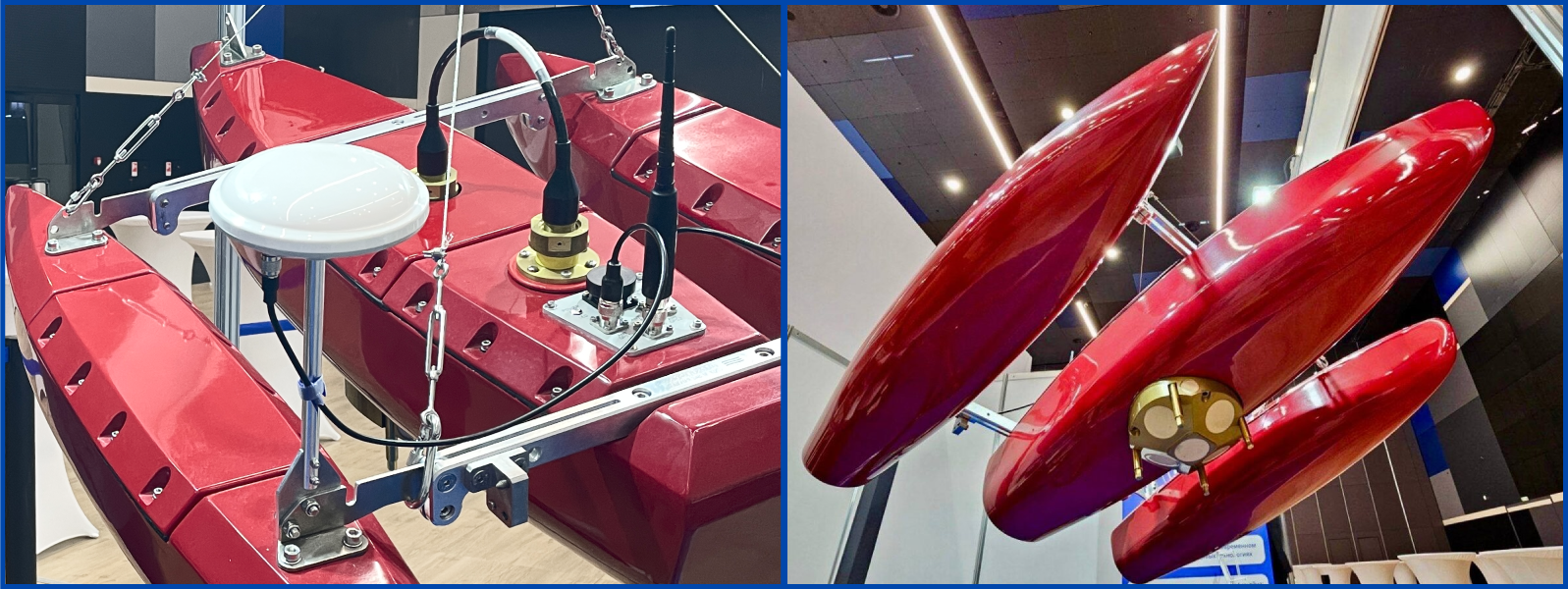

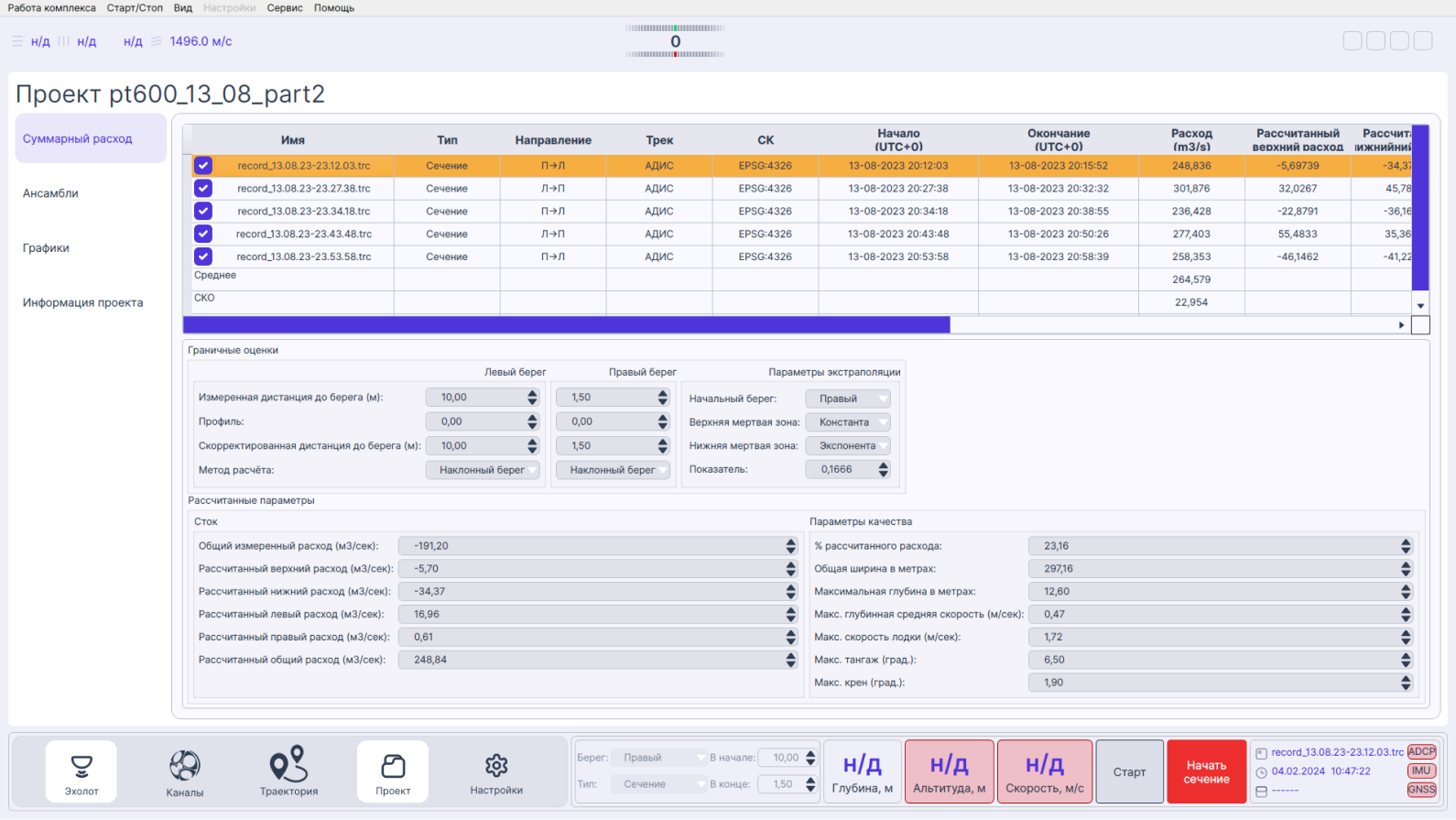

The ADCP PT-600 can be installed either stationary in bays and rivers or used as part of a mobile platform, such as for measuring river discharge using the "moving boat" method. - Functionally, it includes:

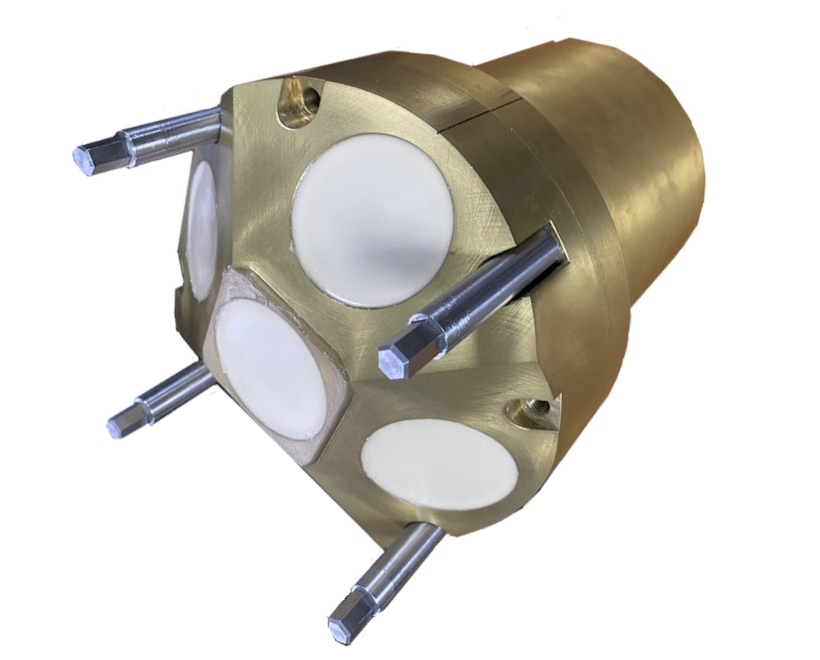

- A 5-beam Doppler system
- Pitch and roll sensors
- A magnetic compass
- A water temperature sensor
ADCP PT-600 is available in two versions:

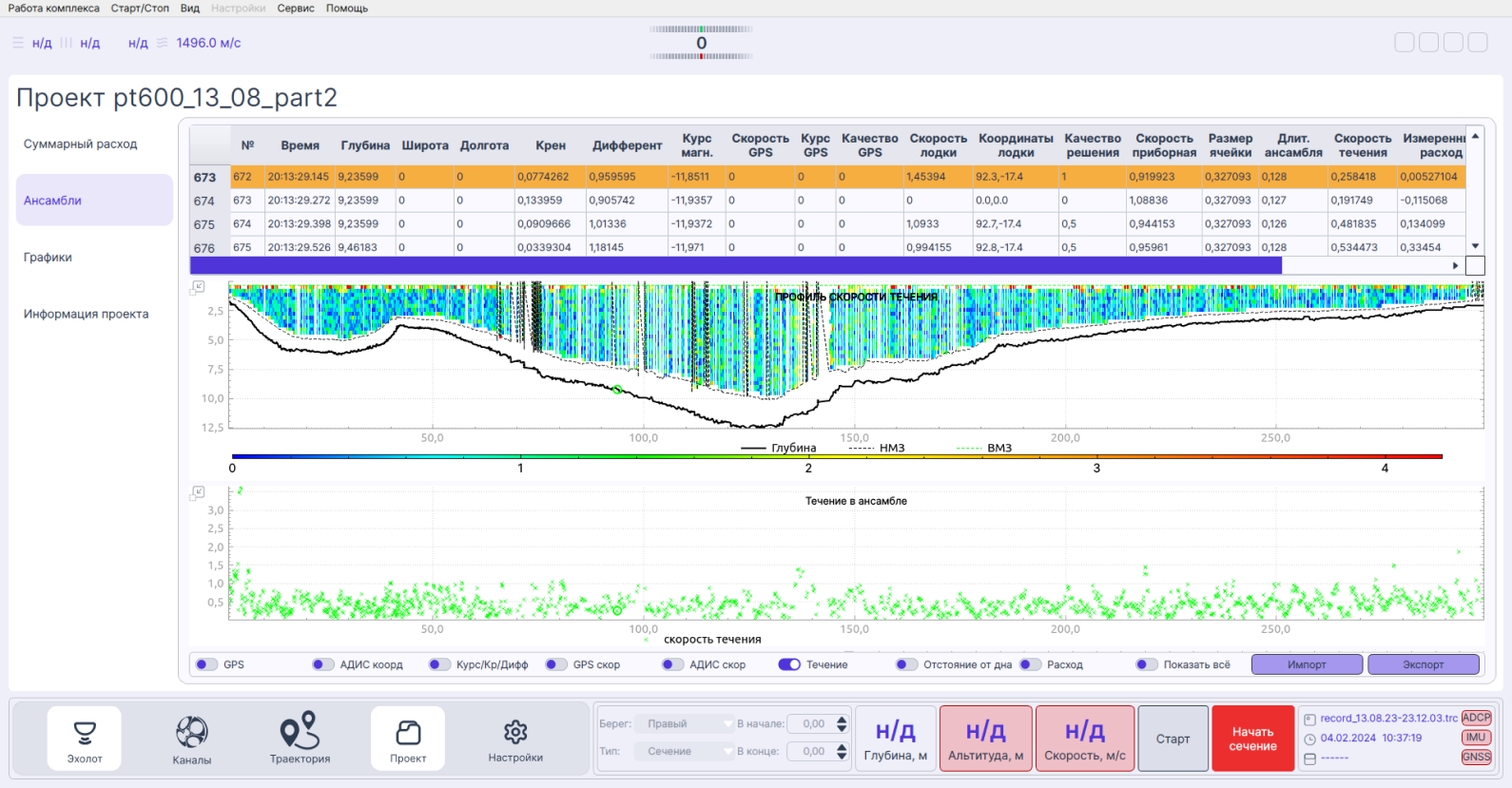

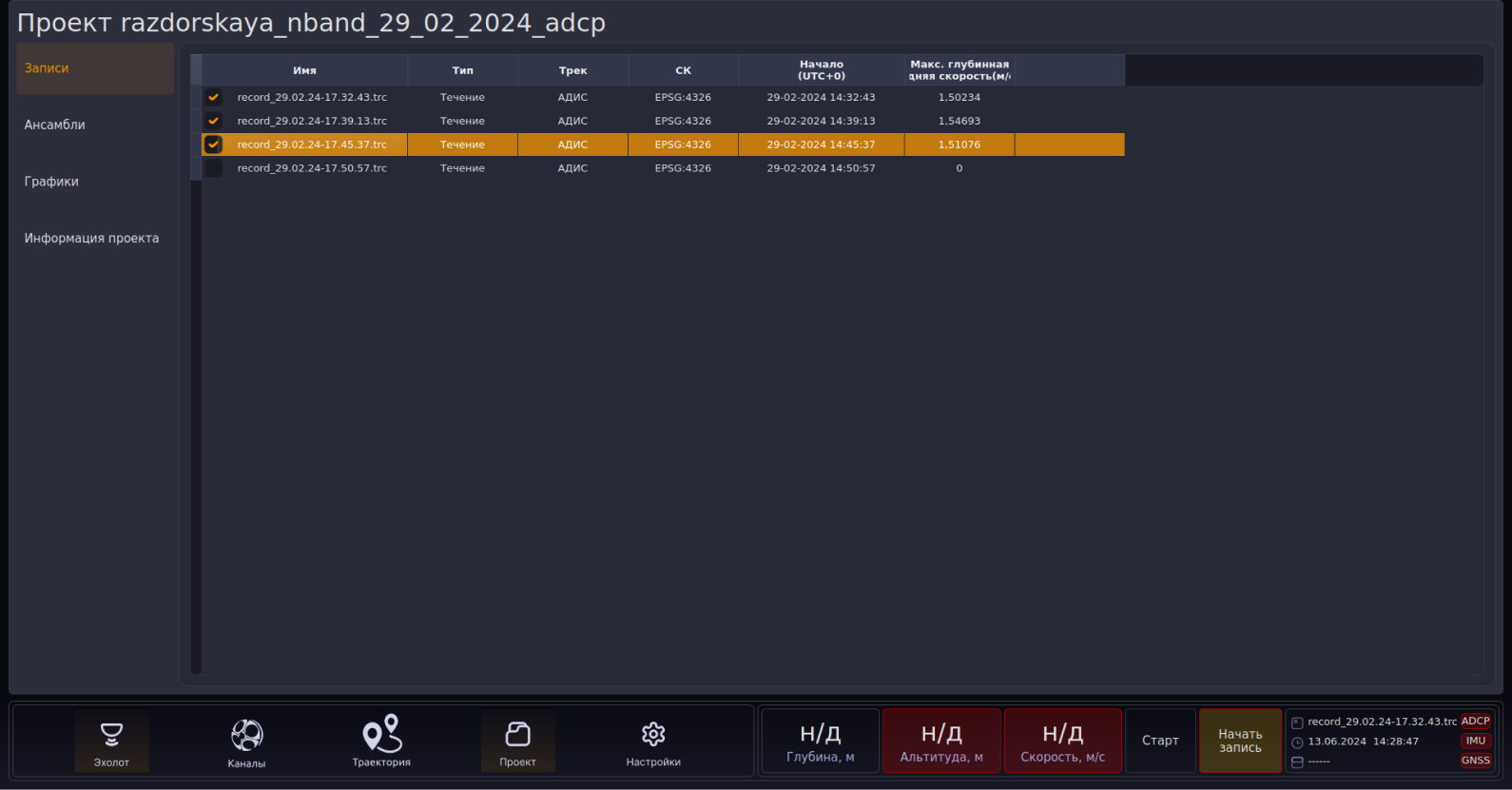

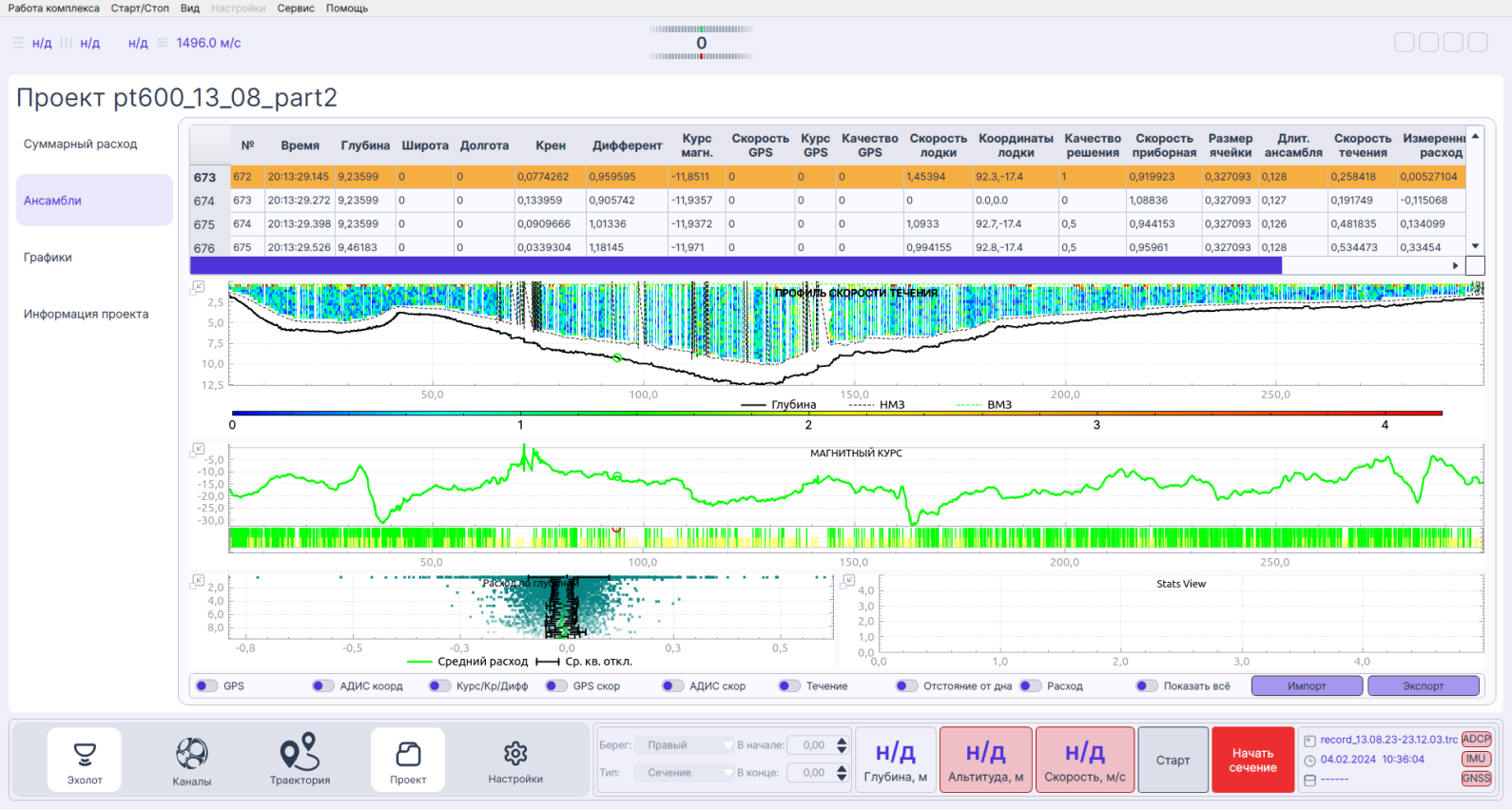

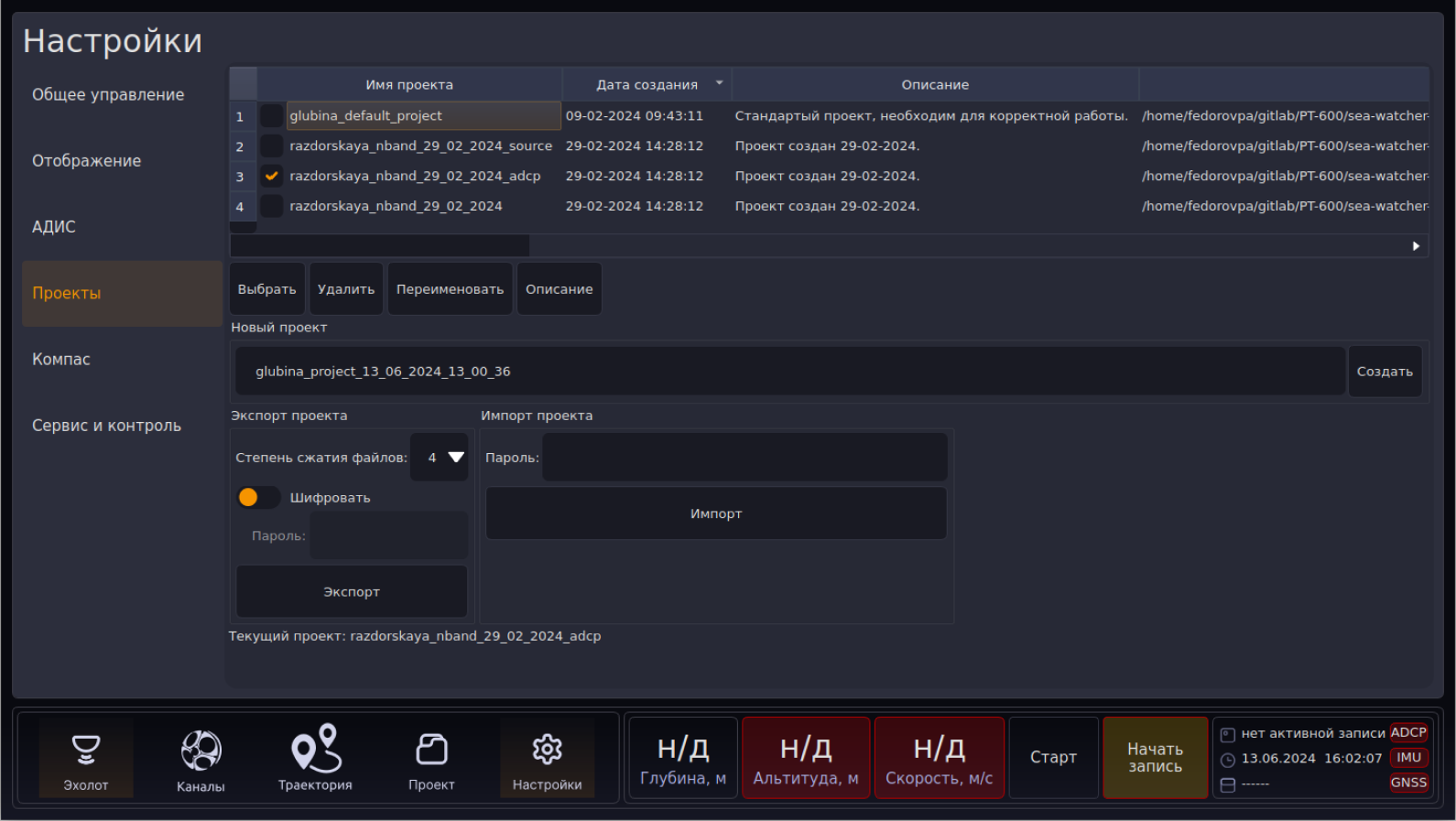

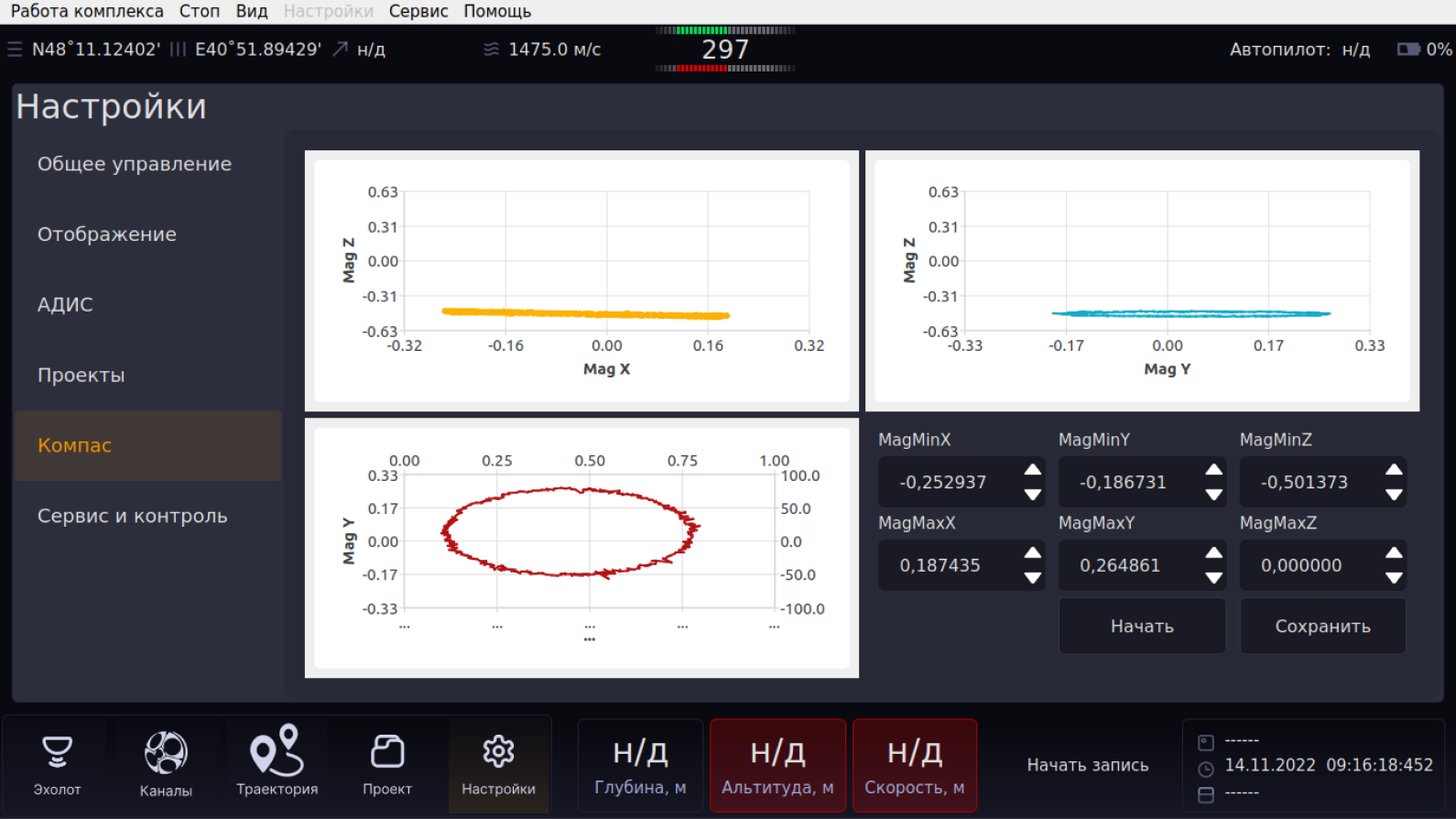

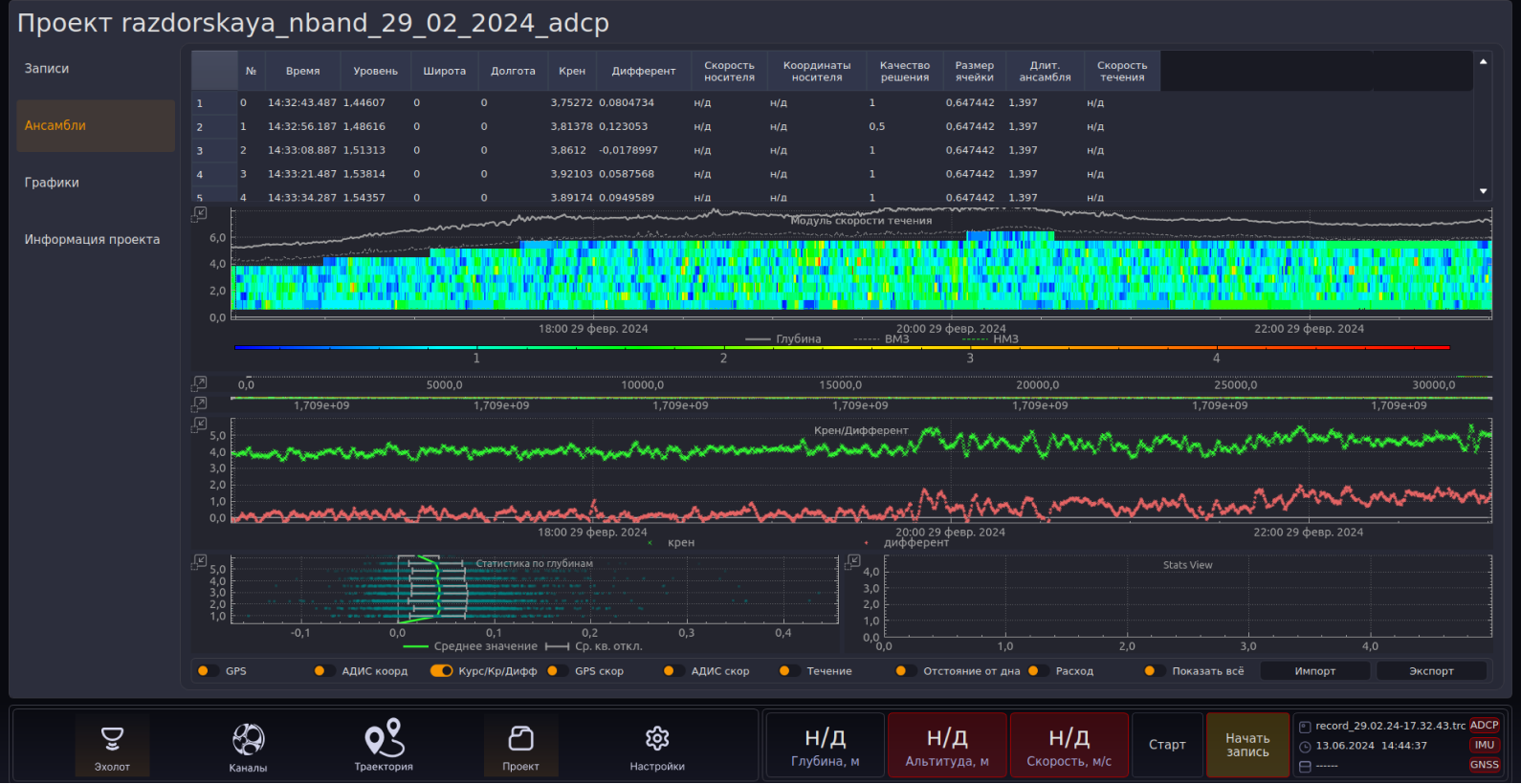

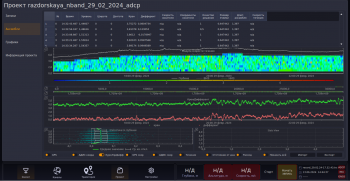

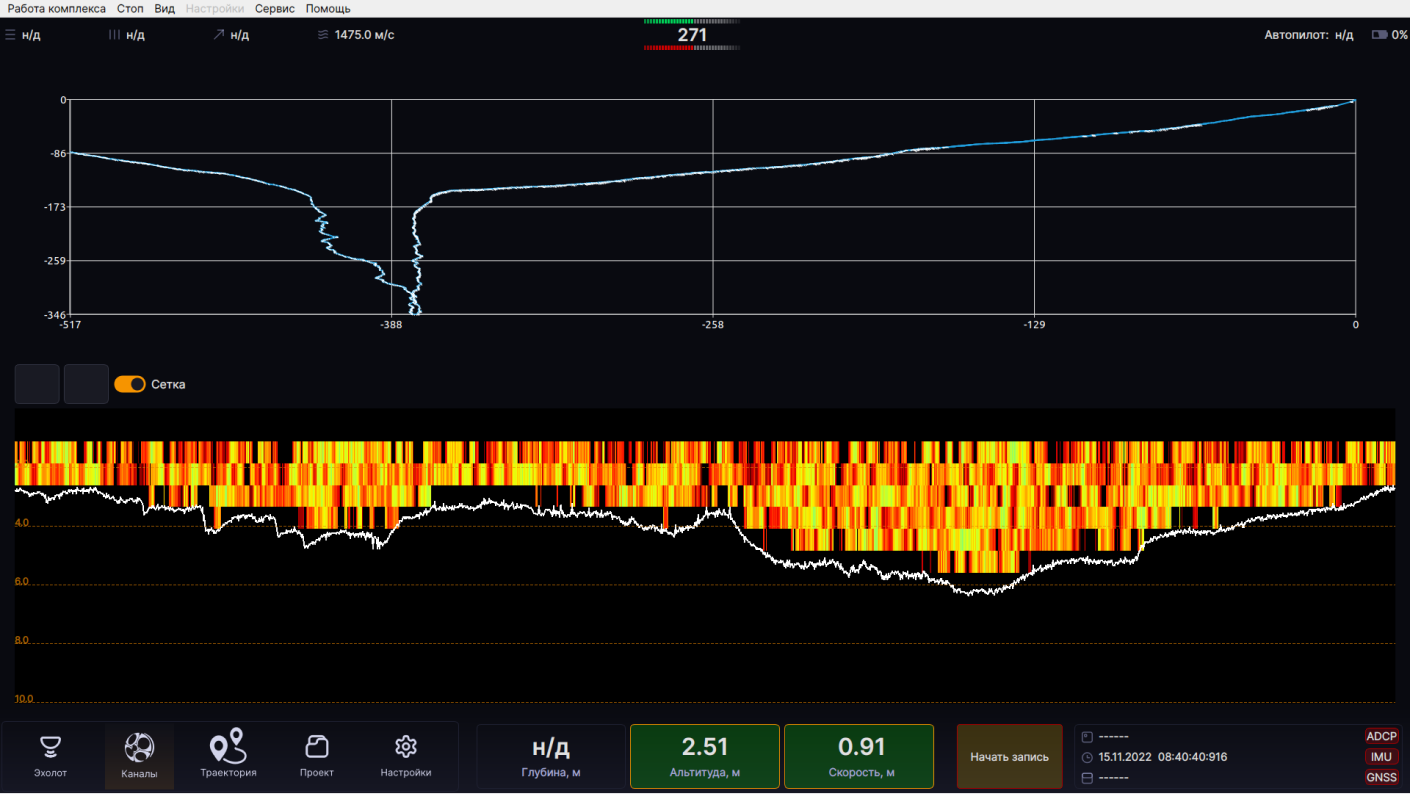

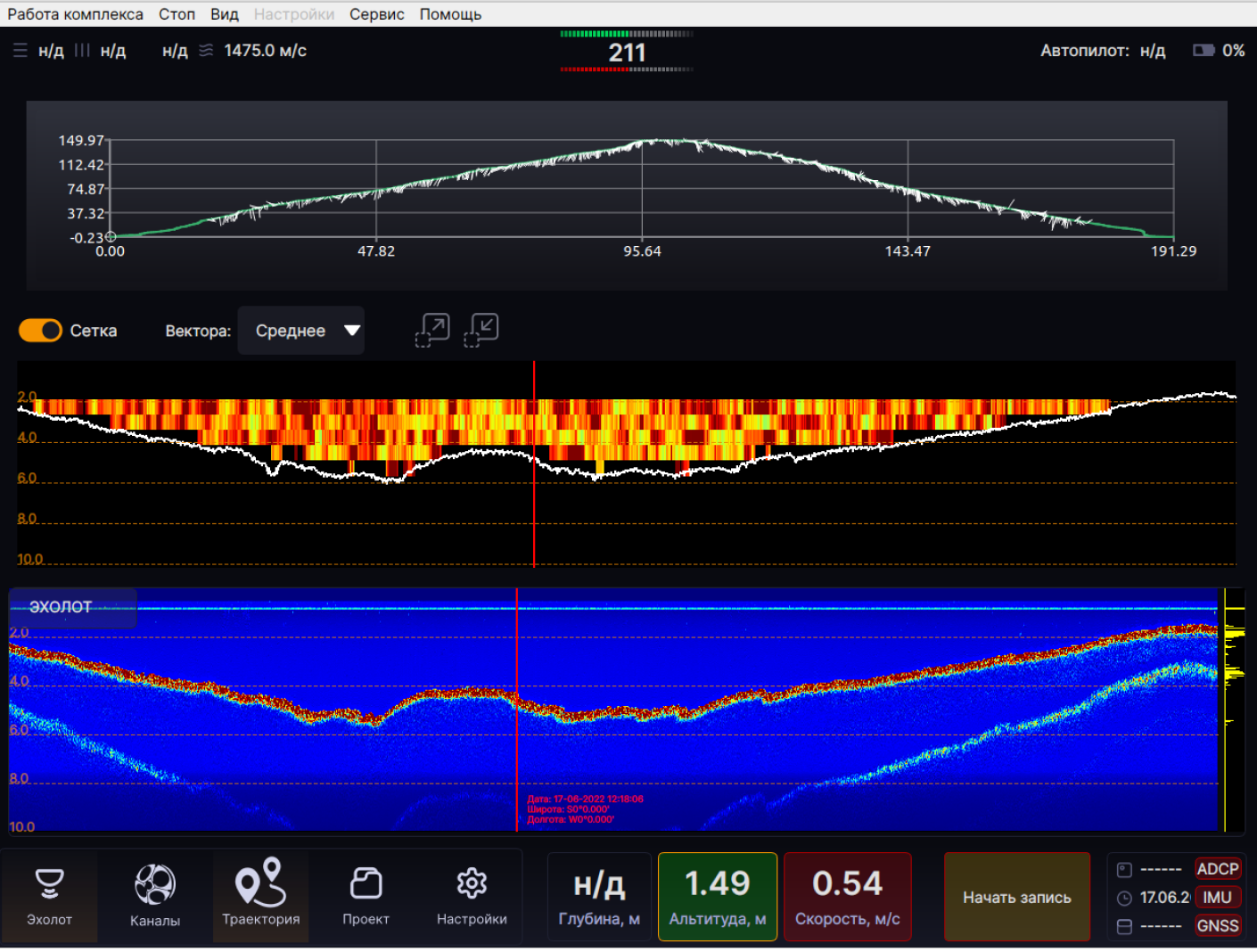

- ADCP PT-600 with Katun software: сan be installed stationary in bays and rivers or used on mobile platforms, such as for river discharge measurements using the "moving boat" method.

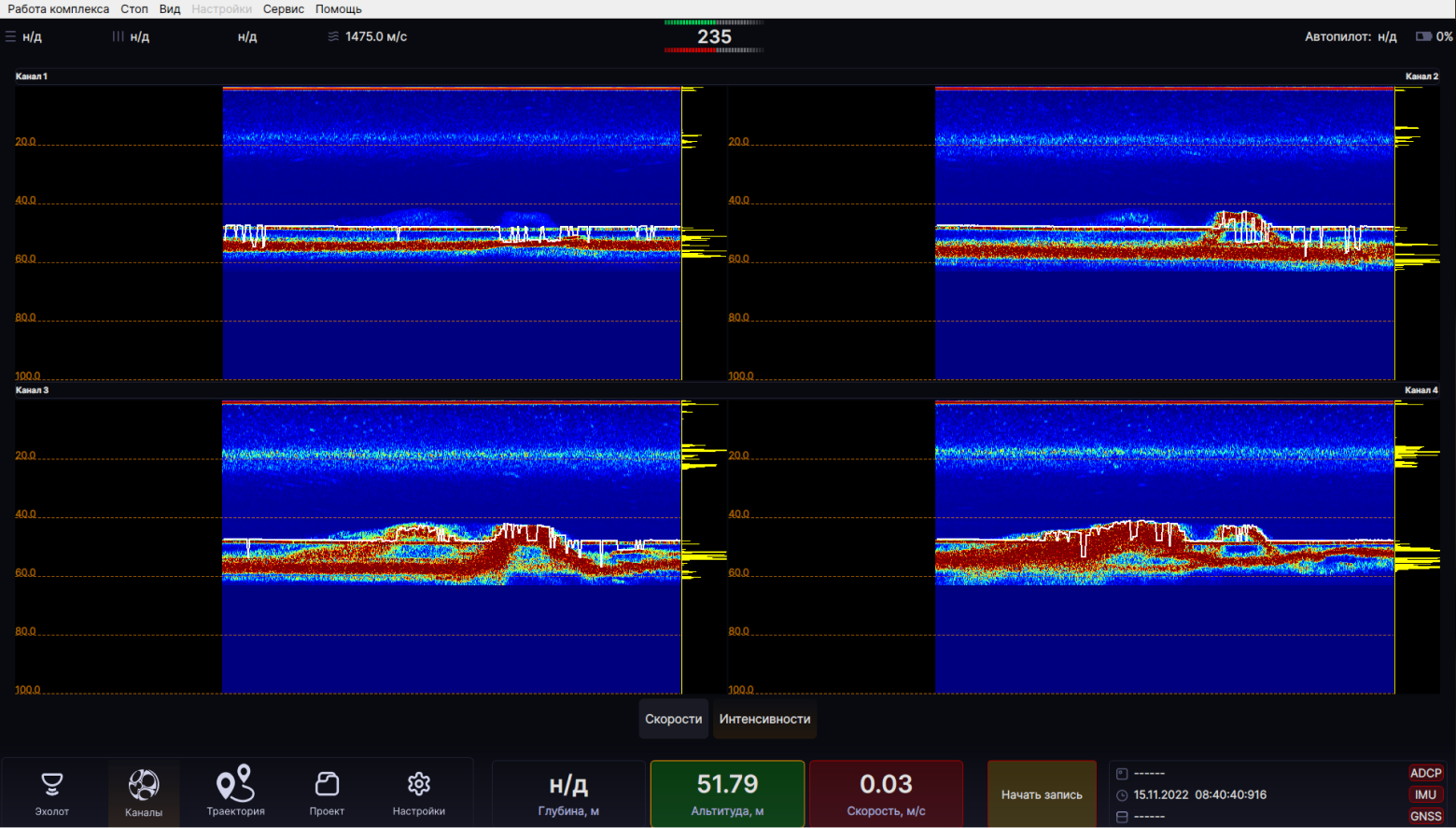

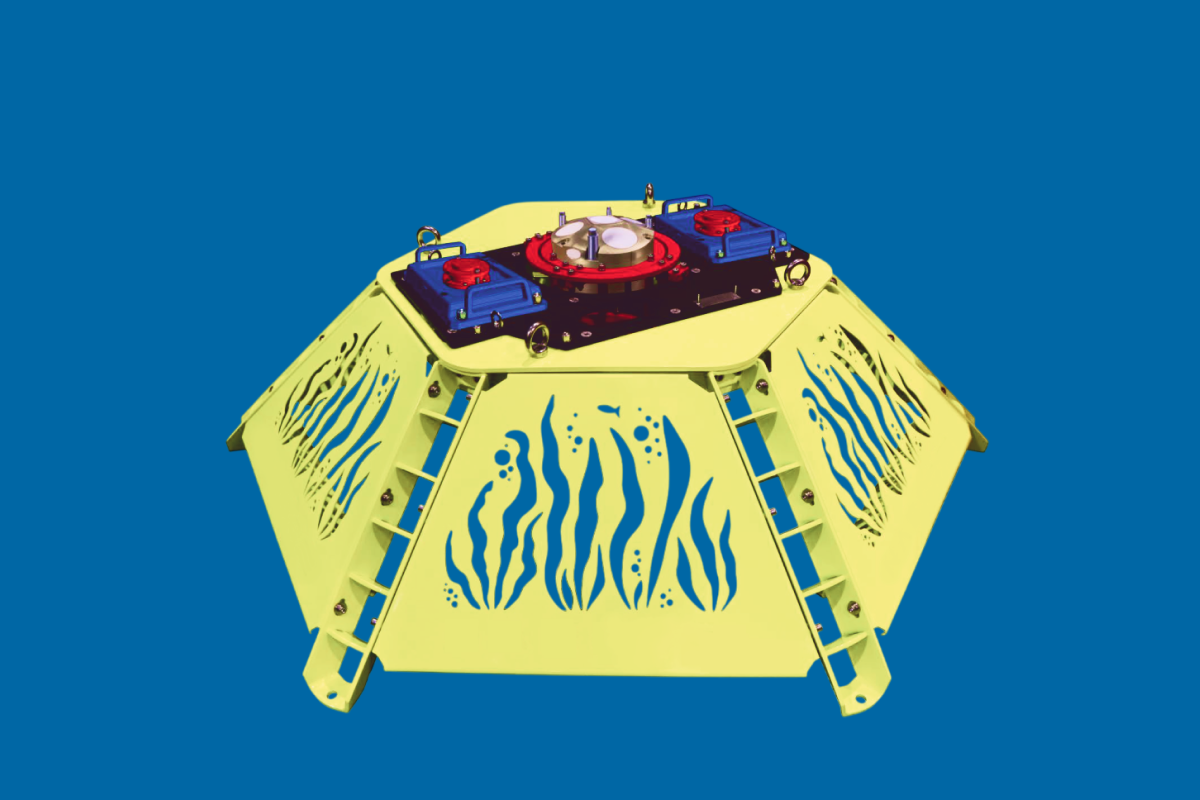

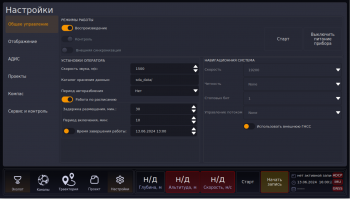

- ADCP PT-600 for underwater installation with Bosfor software: сan operate in real-time (online) mode or according to a predefined deployment plan.
Specifications | |
|---|---|
| Operating frequency | 600 kHz |
| Profiling range | 10m; 20m; 40m; 60m; 80m; 120m |
| Cell size | 0,35m; 0,5m; 0,7m; 1m; 2m |
| Minimum blanking distance | 1m |
| Velocity range (along beam) | 0,01m/s to 5m/s |
| Velocity RMS | ±1% ± 1.25 cm/s |
| Maximum ping rate | 4 Hz |
| Beam width/angle | ≤ 3.5° |
| Temperature | -5° to 35°C |
| Heading accuracy/resolution | ± 2,5°/1° |
| Pitch & roll accuracy/resolution | no more than 2°/0.1° |
| Communications | Fast Ethernet, Wi-Fi |
| External power | 21.5V to 26.5V |
| Power | no more than 50 W |
| Depth rating | 300m |
| Construction | Aluminum alloy (Barrier layer: Titanium Nitride Final layer: Polymer composite) |
| Weight in air | no more than 10.2 kg |
| Dimensions | ⌀ 200 mm х 326 mm |
| Warranty period | 12 months |
