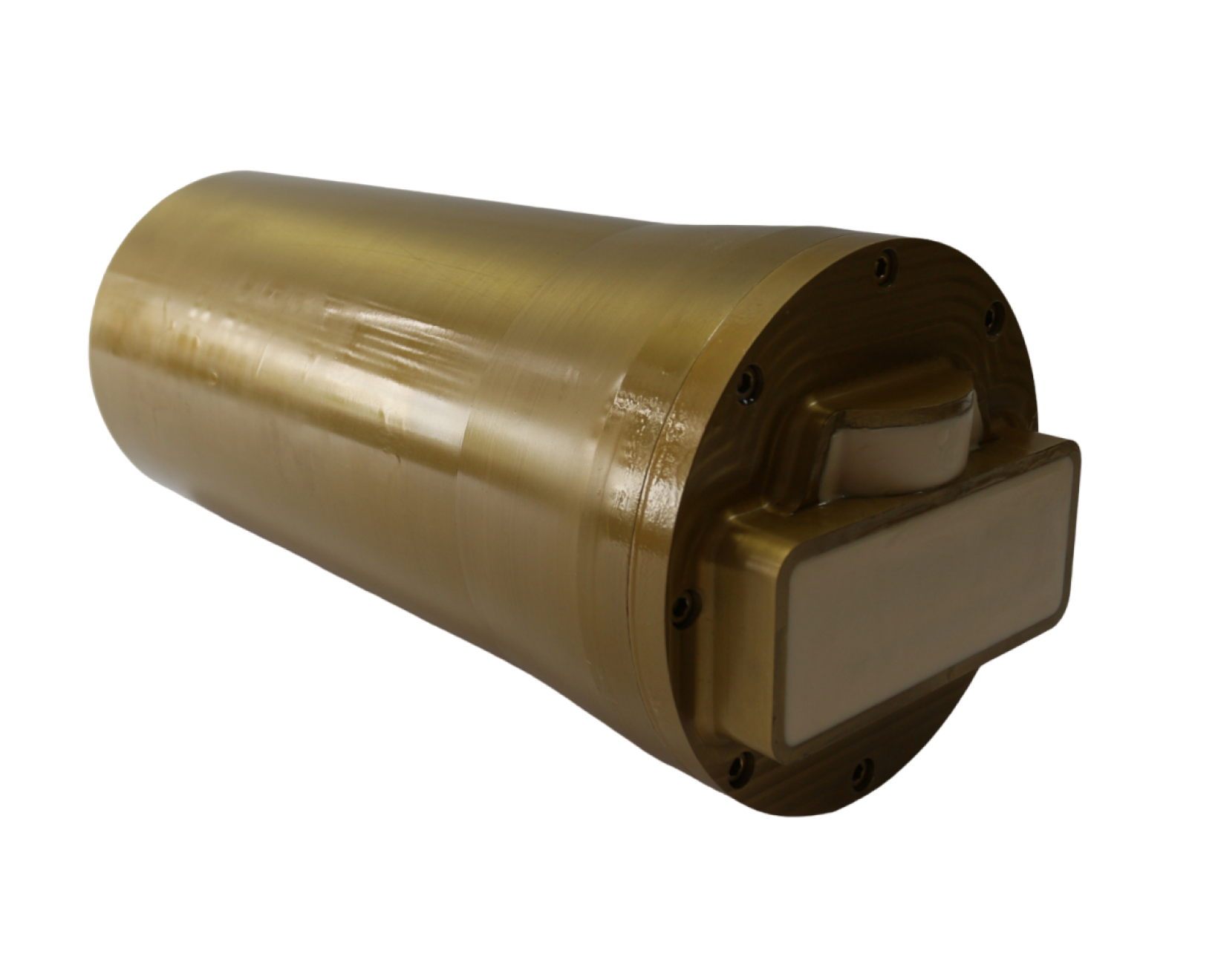

Aquazond Sector Scan Sonar GSO-400
The Sector Scan Sonar GSO-400 is designed for installation on underwater equipment and performs acoustic detection of underwater objects within a specific sector of the underwater environment.

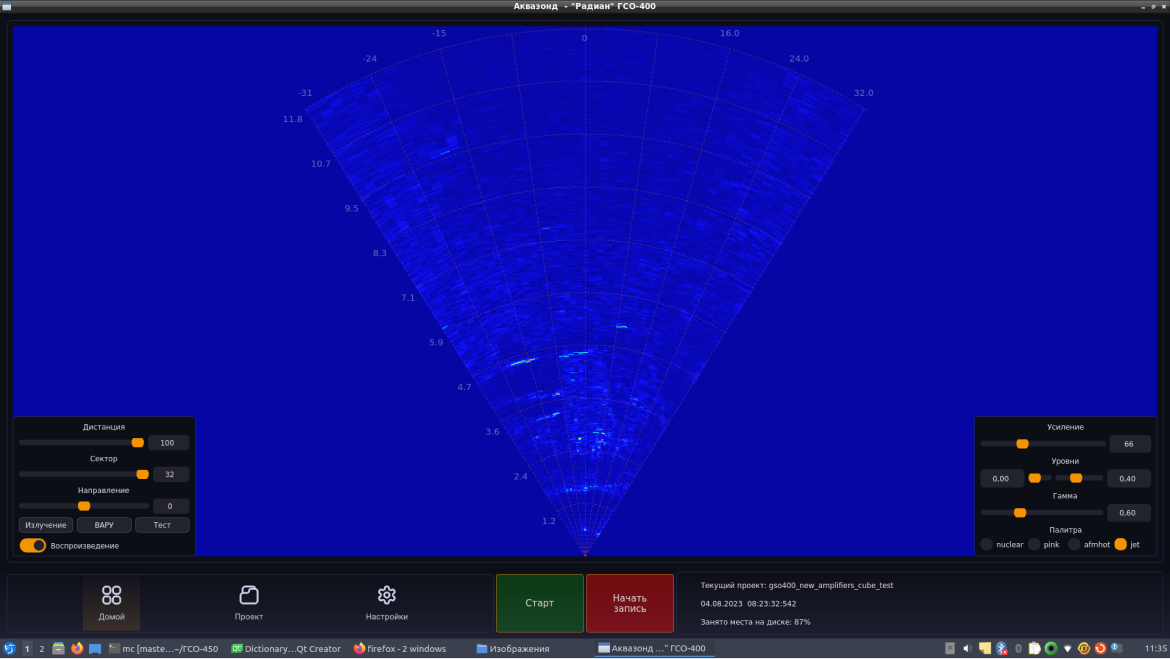

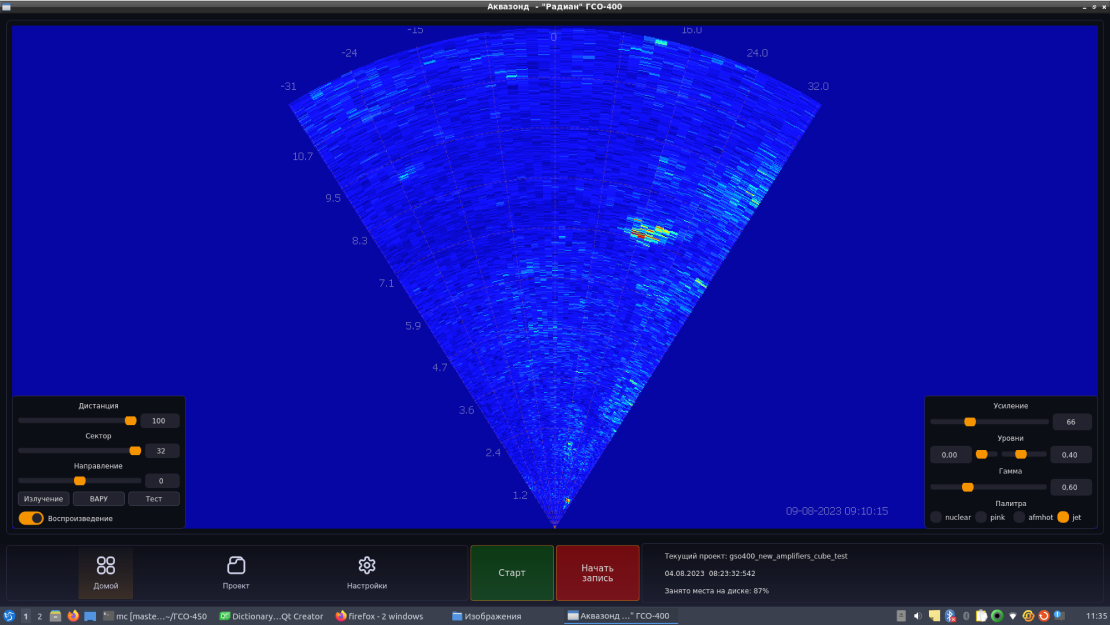

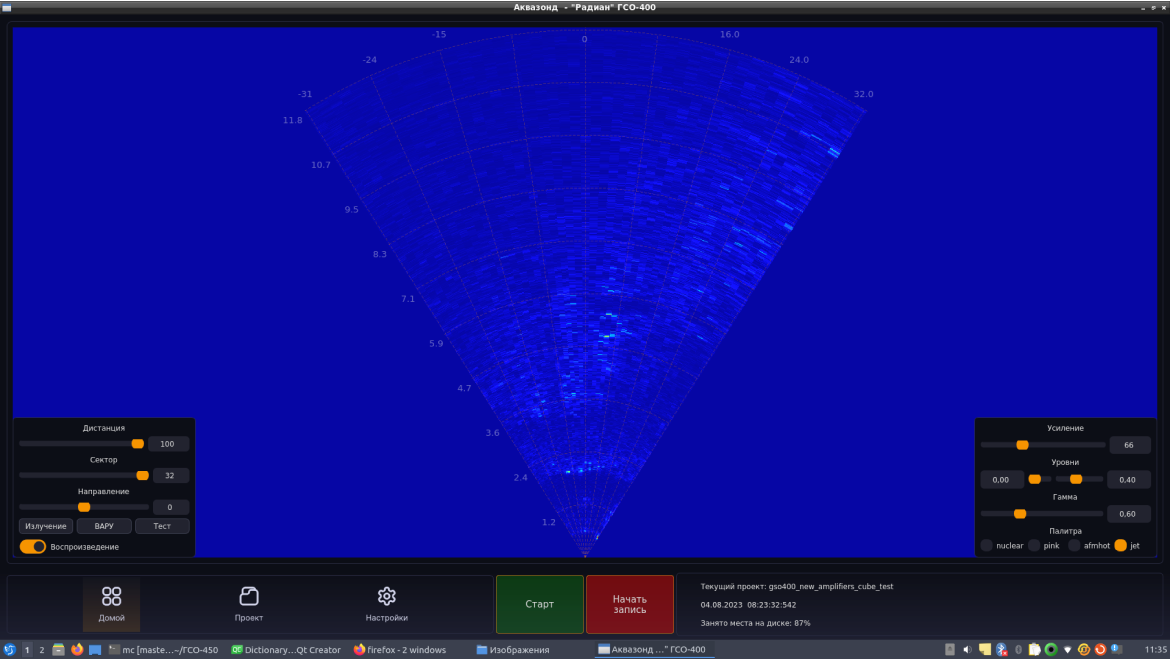

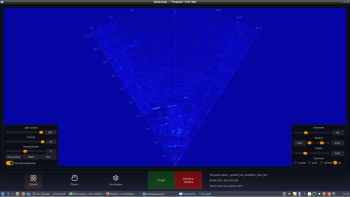

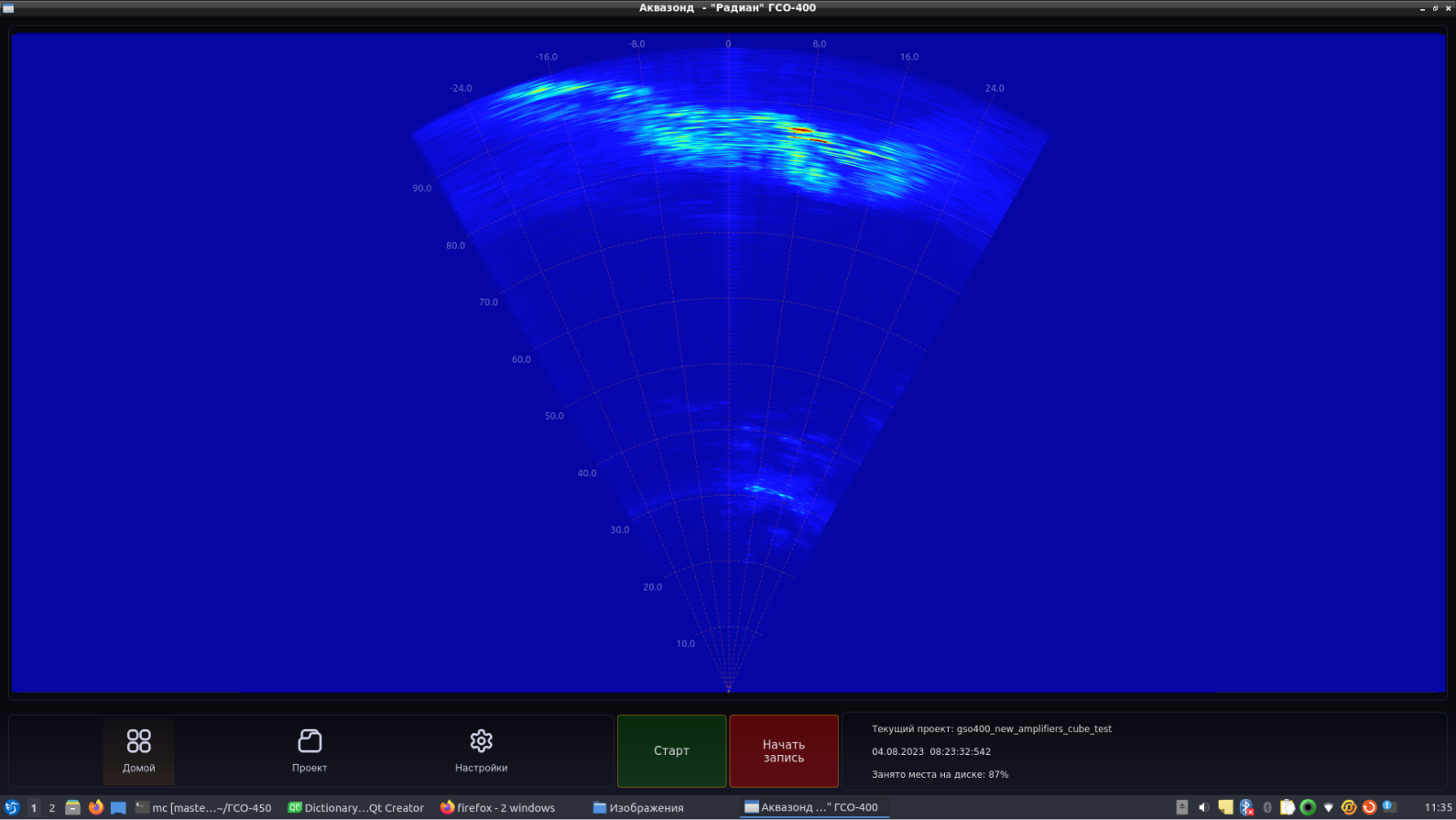

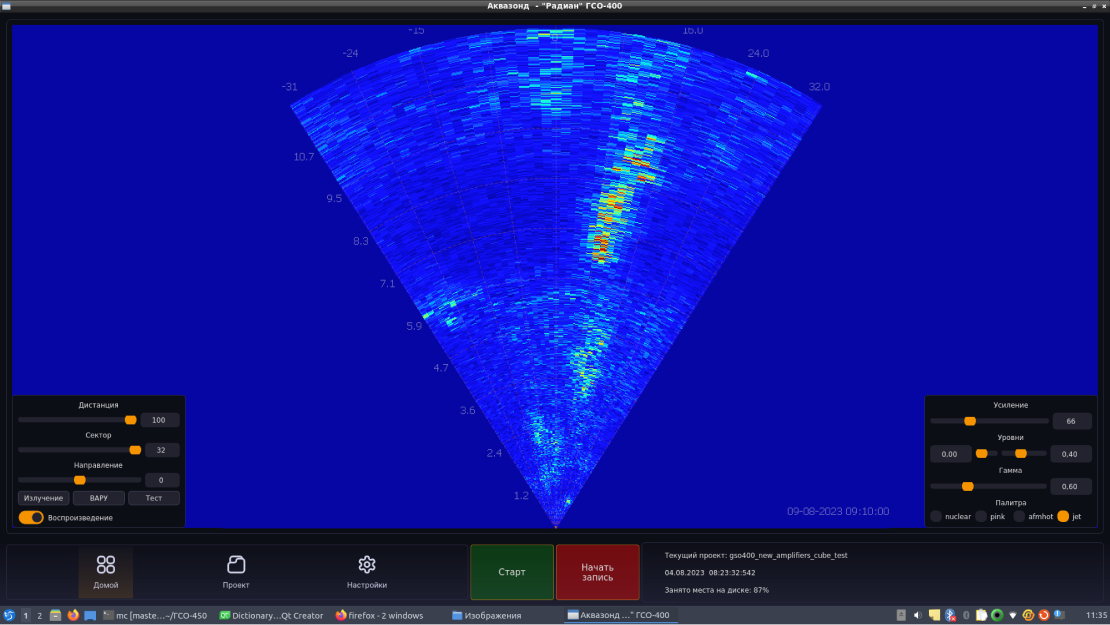

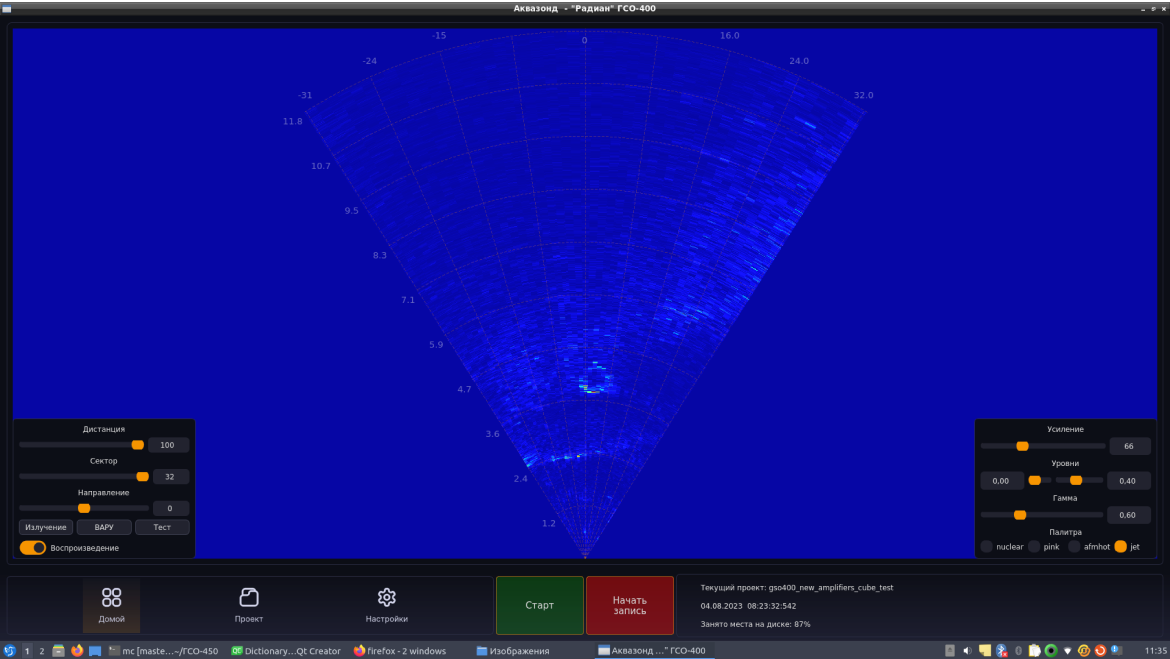

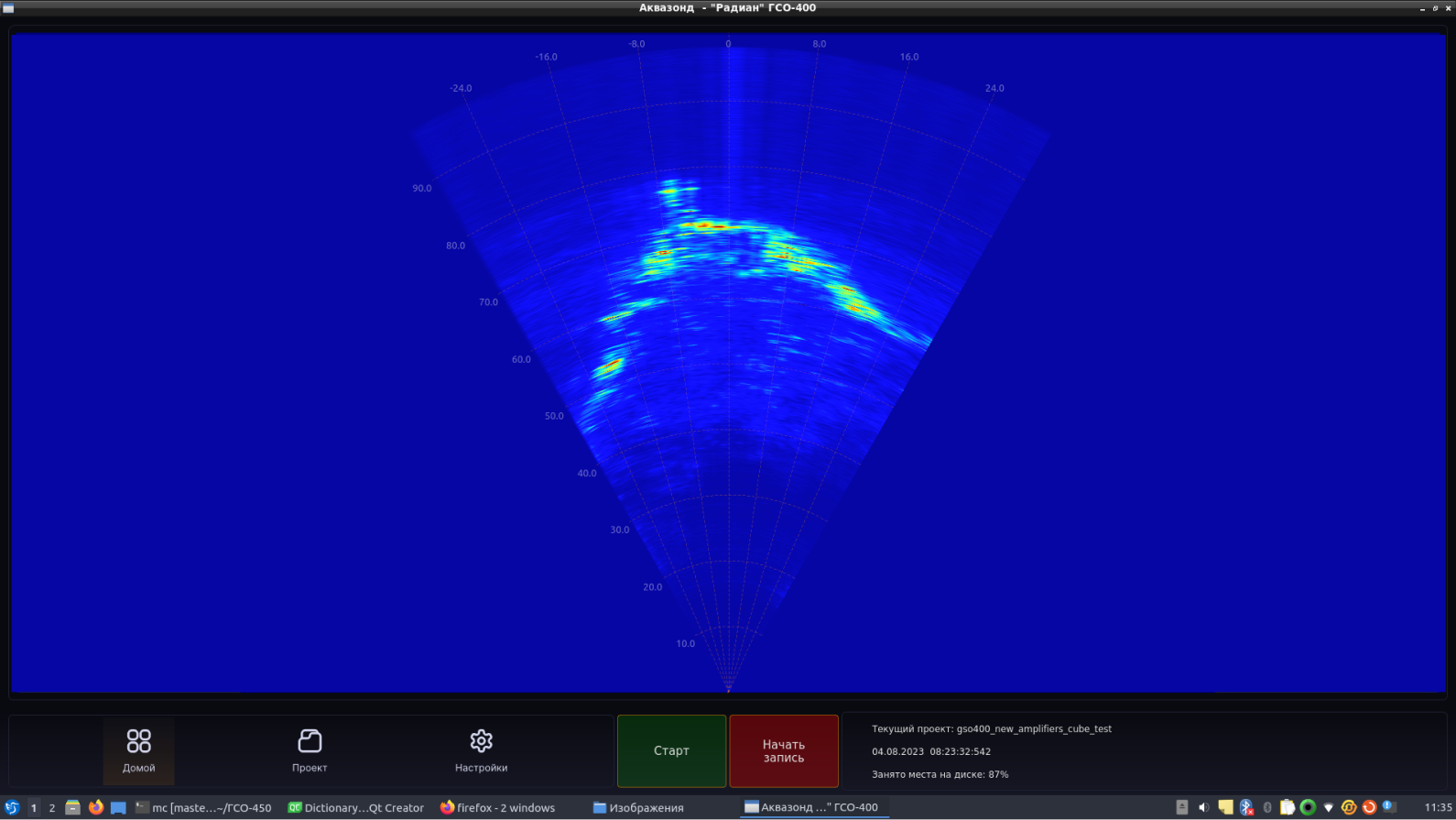

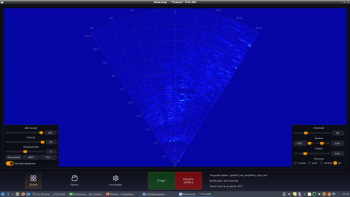

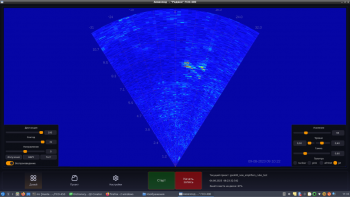

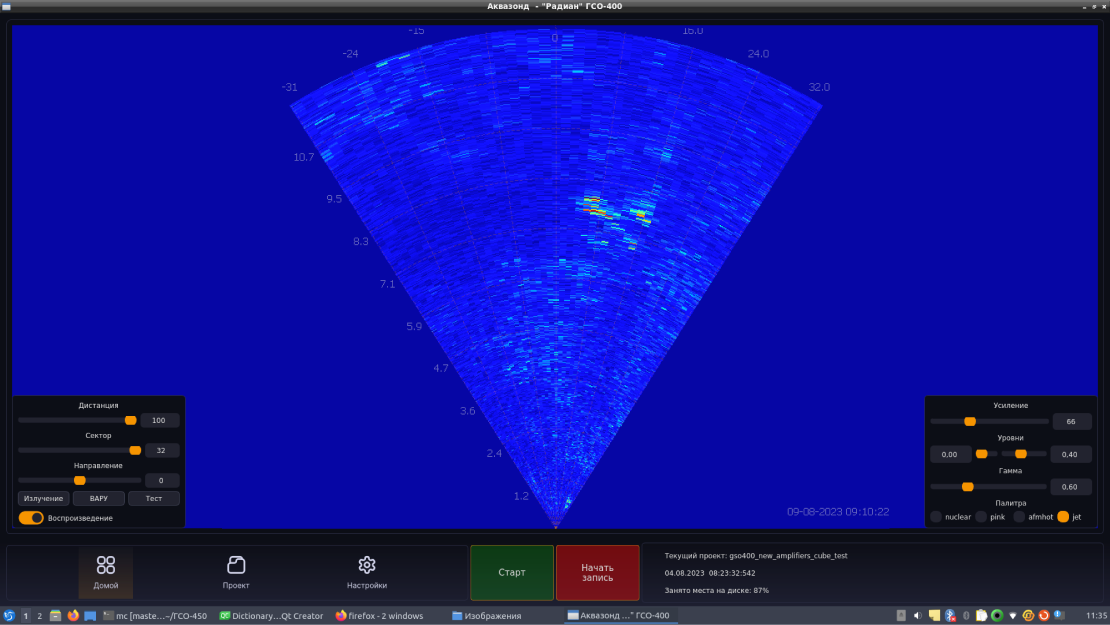

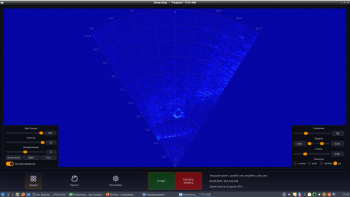

The operation and modes of the sonar are controlled from an operator's workstation located onshore or onboard a vessel (or offshore platform).
Specifications | |
|---|---|
| Operating frequency range | from 430 to 470 kHz |
| Receiving sensitivity | -170 dB·V relative to 1 µPa |
| Number of acoustic beams | 48 |
| Horizontal field of view | at least 63.6° |
| Vertical field of view | at least 10° |
| Resolution | 2.3° |
| Object localization range by distance | from 1 m to 100 m |
| Distance resolution | 2.5 cm |
| Image refresh rate | 1 frame/s (at a range of 100 m) |
| Depth rating | up to 3000 m |
| Temperature | -5° to 35°C |
| Communications | Ethernet |
| External power | from 22 V to 30 V DC |
| Power | no more than 70 W |
| Construction | aluminum alloy with anti-corrosion coating |
| Weight in air | no more than 16 kg |
| Warranty period | 12 month |
